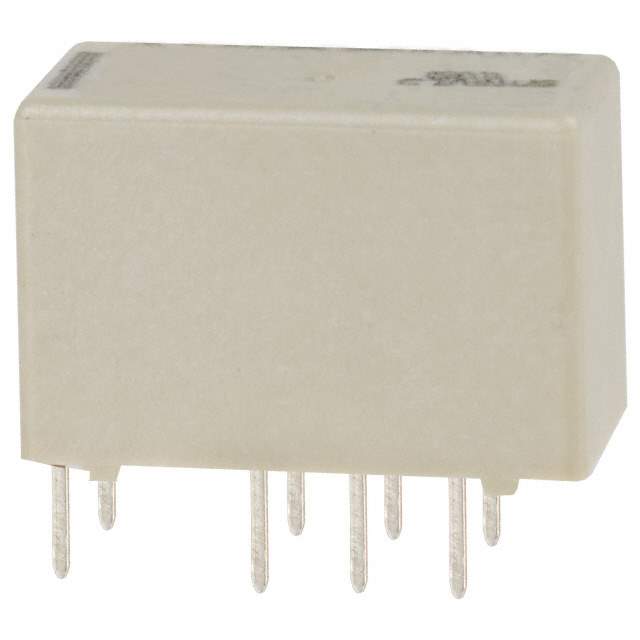

Same model may have multiple batches, images only for reference.

2-1393788-4

Name: 2-1393788-4
Brand: TE Connectivity
SKU: 1042308
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	2-1393788-4
Manufacturer	TE Connectivity
Catalog	Signal Relays, Up to 2 Amps
Description	Signal Relay 4.5VDC 2A DPDT(14.5x7.2x9.8)mm THT Automotive Medical
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Case / Package	DIP
Coil Current	31.1 mA
Coil Power	807 mW
Coil Resistance	145 Ω
Coil Type	Non-Latching
Coil Voltage (AC)	4.5 V
Coil Voltage (DC)	4.5 V
Contact Current Rating	2 A
Contact Material	Gold
Contact Plating	Gold
Contact Voltage Rating (DC)	220 V
ELV	Compliant
Height	9.8044 mm
Length	14.5034 mm
Maximum Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Mount	Through Hole
Operate Time	4 ms
Packaging	Box
Power Consumption	140 mW
Relay Type	Relay
Release Time	4 ms
RoHS	Compliant
Termination	PCB
Throw Configuration	DPDT
Weight	2.800933 g
Width	7.2 mm
Win Source Part Number	1042308-2-1393788-4
Categories	Signal Relays,Up to 2 Amps
Manufacturer	TE Connectivity
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 2-1393788-4 CAD Model

Alternative Products

Description

The 1042308-2-1393788-4 is a non-latching DPDT relay, manufactured by TE Connectivity.

Coil Voltage: 4.5 V (DC)
Power Consumption: 140 mW
Contact Voltage Rating: 220 V (DC)
Contact Current Rating: 2 A
Operate Time: 4 ms
Release Time: 4 ms
Relay Type: Signal Relay
Package/Case: DIP
Contact Material and Plating: Gold
