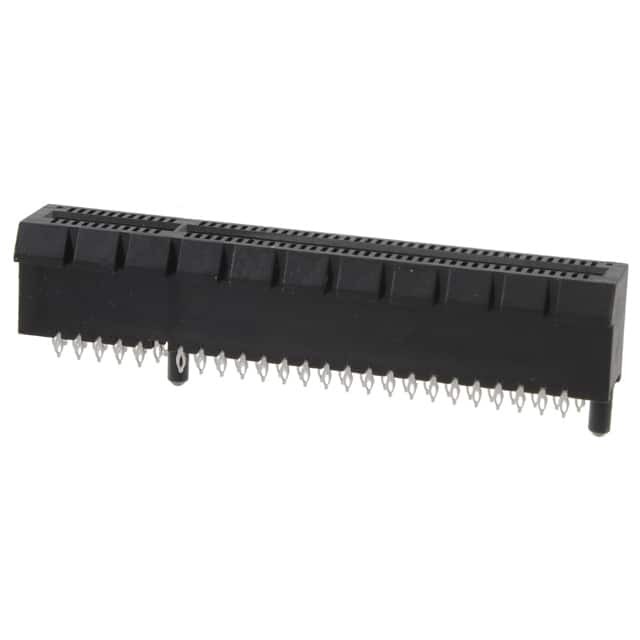

1871058-3
Same model may have multiple batches, images only for reference.

1871058-3

Part No 1871058-3
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FEMALE 98POS 0.039
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity
Package Bulk
Product Status Active
Card Type PCI Express™
Gender Female
Number of Positions 98
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide, Locking Ramp
Mounting Type Through Hole
Termination Press-Fit
Contact Material Copper Alloy
Contact Finish Gold-Palladium
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Thermoplastic
Base Product Number 1871058
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854218-1871058-3
Ultra Librarian 3D Model Ultra Librarian 1871058-3 CAD Model

Description

The 854218-1871058-3 is a card edge connector from TE Connectivity.

  • Positions: 98
  • Pitch: 0.039 inches (1.00mm)
  • Color: Black
  • Features: Board Guide and Locking Ramp
  • Contact Material: Copper Alloy
  • Insulation Material: Thermoplastic
  • Gender: Female
  • Package Quantity: 40 pieces
  • Card Type: PCI Express™
  • Card Thickness: 0.062 inches (1.57mm)
  • Mounting Type: Through-Hole
  • Operating Temperature: -55°C to 85°C
  • Packaging: Bulk
  • Product Status: Active
