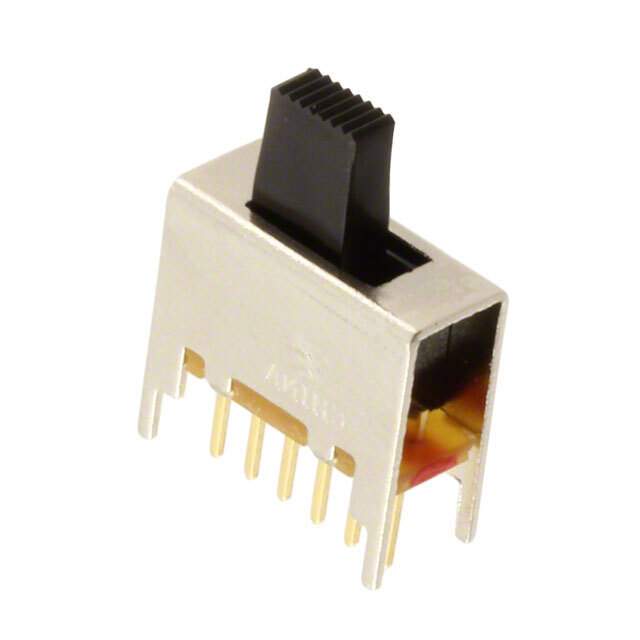

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series MSS
Package Bulk
Circuit DPDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard
Actuator Length 6.20mm
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -20°C ~ 85°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.00mm
Mechanical Life 15,000 Cycles
Electrical Life 15,000 Cycles
Operating Force 600gf
Base Product Number 1825262
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names -MSS2225G04-LSI,-1825262-2-SI,450-1967,MSS2225G04,-MSS2225G04-SI,2266-1825262-2,-MSS2225G04-SI-ND,MSS2225G04-ND
Standard Package 600
Win Source Part Number 1172593-1825262-2
Ultra Librarian 3D Model Ultra Librarian 1825262-2 CAD Model

Description

The MSS series slide switch is a high-quality product manufactured by TE Connectivity ALCOSWITCH Switches. MSS2225G04 is designed by TE Connectivity ALCOSWITCH Switches.

  • Circuit: DPDT
  • Contact Timing: Shorting (MBB)
  • Switch Function: On-On
  • Actuator Type: Standard
  • Actuator Material: Polyoxymethylene (Acetal) (POM)
  • Voltage Rating (AC): 20V
  • Voltage Rating (DC): 20V
  • Mounting Type: Through Hole
  • Termination Type: Epoxy Sealed Terminals
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Actuator Length: 6.20mm
  • Switch Travel: 2.00mm
  • Electrical Life: 15,000 cycles
  • Mechanical Life: 15,000 cycles
  • Operating Temperature: -20°C to 85°C
  • REACH: Unaffected
  • ECCN: EAR99
