Category Switches>Slide Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series MSS
Package Bulk
Circuit DPDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard
Actuator Length 2.30mm
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -20°C ~ 85°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.00mm
Mechanical Life 15,000 Cycles
Electrical Life 15,000 Cycles
Operating Force 600gf
Base Product Number 1825261
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9050
Other Names MSS2200G04-ND,450-1588,MSS2200G04,2266-1825261-2
Standard Package 600
Win Source Part Number 1089799-1825261-2
Ultra Librarian 3D Model Ultra Librarian 1825261-2 CAD Model

Description

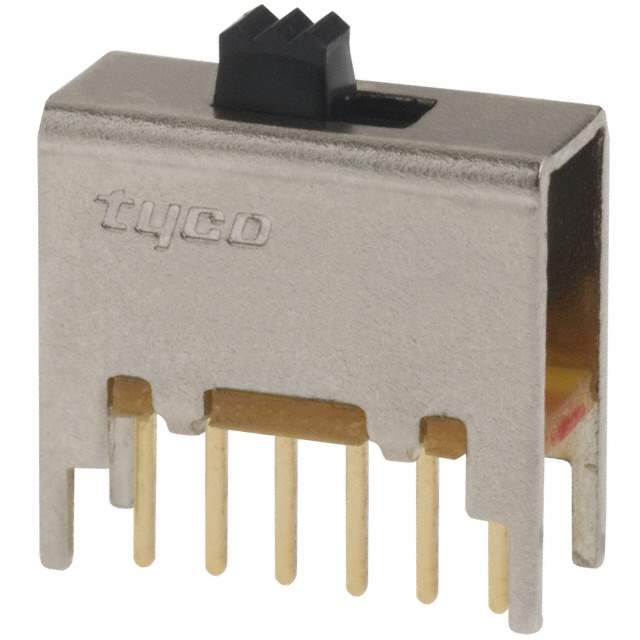

The 1825261-2 is a DPDT slide switch from TE Connectivity ALCOSWITCH Switches.

  • Voltage Rating: 20 V AC/DC
  • Current Rating: 0.4VA
  • Contact Timing: Shorting (MBB)
  • Actuator Length: 2.30mm
  • Mechanical Life: 15,000 cycles
  • Operating Force: 600gf
  • Mounting Style: Through hole
  • Temperature Range: -20°C to 85°C
