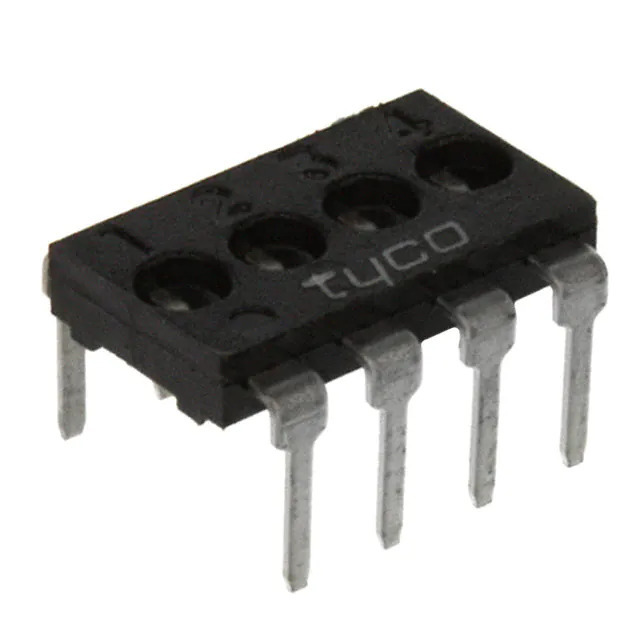

Same model may have multiple batches, images only for reference.
1825190-3 TE Connectivity
Same model may have multiple batches, images only for reference.

1825190-3

Part No 1825190-3
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SHUNT DIP PROGRAMMABLE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series 7600
Package Tube
Product Status Active
Circuit Programmable
Number of Positions 4
Current Rating (Amps) -
Voltage Rating -
Actuator Type Breakable (Shunt)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Tin
Height Above Board 0.079" (2.00mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features -
Temperature Range - Operating -55°C ~ 105°C
Body Material Thermoplastic
Length 0.400" (10.16mm)
Mechanical Life -
Electrical Life -
Base Product Number 1825190
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1376390-1825190-3
Ultra Librarian 3D Model Ultra Librarian 1825190-3 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches 7600 DIP Switch is a programmable switch used in electronic devices.

  • Positions: 4
  • Pitch: 0.100" (2.54mm)
  • Actuator Type: Breakable (Shunt)
  • Termination Style: PC Pin
  • Suitable for: Use in various electronic applications where programmable switches are required.
  • Manufacturer: TE Connectivity ALCOSWITCH Switches
  • Product: 7600 DIP Switch
