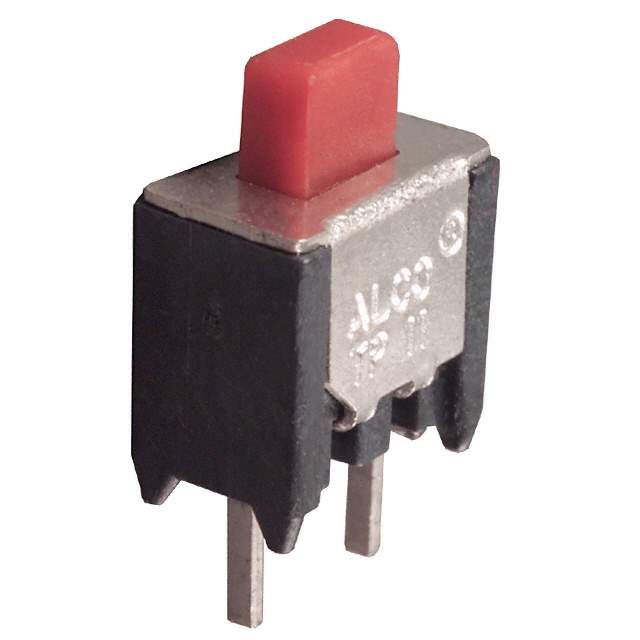

1825095-2 Real Image
Same model may have multiple batches, images only for reference.

1825095-2

Part No 1825095-2
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.4VA 20V / Pushbutton Switch SPST-NO Standard Through Hole
Datasheet
1825095-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series TP
Package Bulk
Mounting Type Through Hole
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Rectangular, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Red
Termination Style PC Pin
Temperature Range - Operating -30°C ~ 65°C
Electrical Life 100,000 Cycles
Base Product Number 1825095
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9031
Other Names 2266-1825095-2,450-1368,TP11CGPC204
Standard Package 25
Win Source Part Number 1028773-1825095-2
Ultra Librarian 3D Model Ultra Librarian 1825095-2 CAD Model

Description

The TP11CGPC204 is a pushbutton switch manufactured by TE Connectivity ALCOSWITCH Switches.

  • Switch Type: Standard
  • Voltage Rating: 20V AC/DC
  • Actuator: Rectangular plunger
  • Actuator/Cap Color: Red
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Mechanical Life: 100,000 cycles
  • Electrical Life: 100,000 cycles
