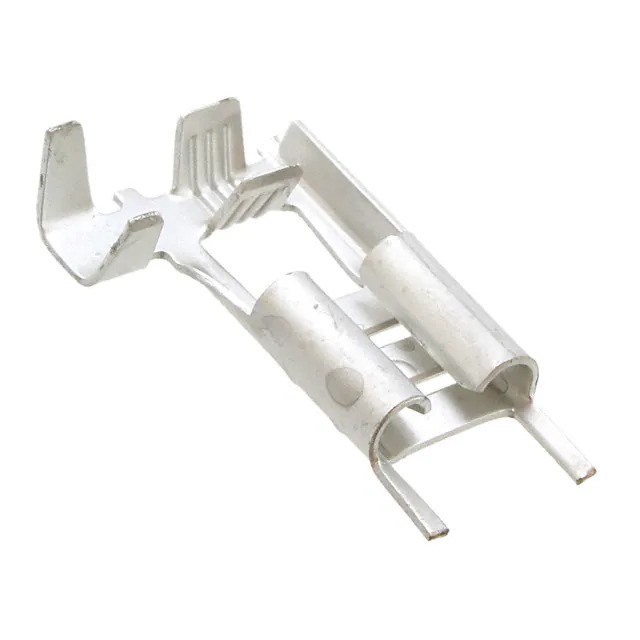

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.299" (7.60mm)
Length - Overall -
Termination Crimp
Wire Gauge 13.5-17 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.098" ~ 0.150" (2.50mm ~ 3.81mm)
Base Product Number 180464
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365000-180464-2
Ultra Librarian 3D Model Ultra Librarian 180464-2 CAD Model

Description

The 1365000-180464-2 is a quick disconnect connector from TE Connectivity AMP Connectors.

  • Series: Faston
  • Package: Tape & reel
  • Wire Gauge: 13.5-17 AWG
  • Termination Style: Crimp
  • Terminal Type: Angled-90°, flag
  • Status: Active
  • MSL Level: Unlimited
  • Base Product Number: 180464
  • HTSUS Code: 8536.90.4000
  • ECCN: EAR99
