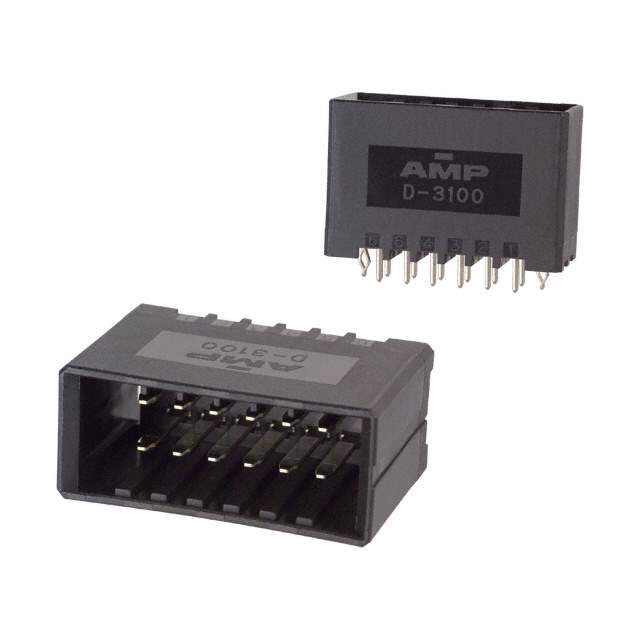

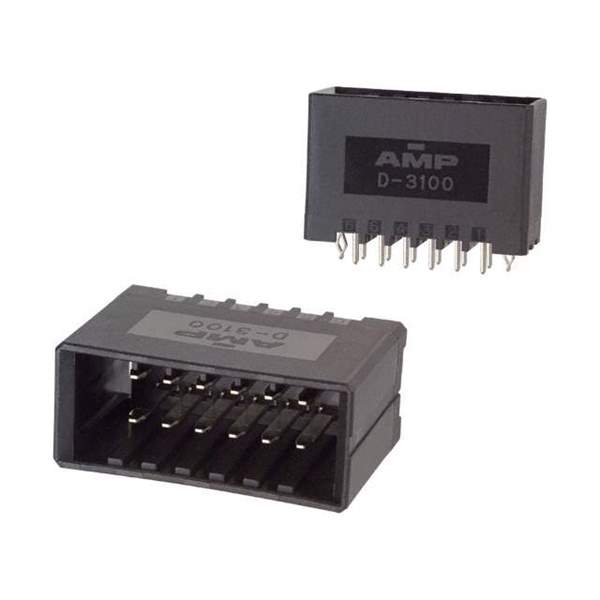

178326-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3100
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.150" (3.81mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.200" (5.08mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.850" (21.59mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Applications General Purpose, Industrial
Base Product Number 178326
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A29520-NDR,2266-178326-5,A29520
Standard Package 15
Win Source Part Number 1011889-178326-5
Ultra Librarian 3D Model Ultra Librarian 178326-5 CAD Model

Description

The dynamic D-3100 series 1011889-178326-5 electronic component is a connector that falls under the category of rectangular connectors - headers, male pins.

  • Positions: 12
  • Features: Board Lock
  • Supply and Demand Status: Balanced
  • Standard Package: 15
  • Temperature Range: -55°C ~ 105°C
  • Contact Finish - Mating: Tin
  • HTSUS: 8536.69.4040
