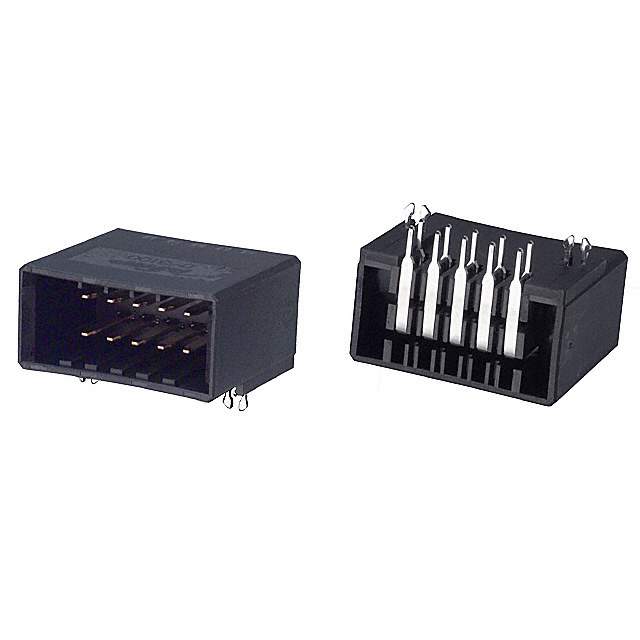

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3100
Package Tube
Connector Type Header
Contact Type Tab
Pitch - Mating 0.150" (3.81mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.200" (5.08mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.568" (14.43mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Applications General Purpose, Industrial
Base Product Number 178305
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -178305-2-SI,A29470,-178305-2-CSI,2266-178305-2,A29470-NDR
Standard Package 17
Win Source Part Number 987397-178305-2
Ultra Librarian 3D Model Ultra Librarian 178305-2 CAD Model

Description

The TE Connectivity AMP Connectors 178305-2 is a rectangular connector that is used for general purpose and industrial applications.

  • Positions: 10
  • Positions Loaded: All
  • Board Lock: Yes
  • Connector Type: Header
  • Contact: Tab
  • Mounting: Through-Hole, Right Angle
  • Shrouding: Shrouded - 4 Wall
  • Pitch-Mating: 0.150" (3.81mm)
  • Row Spacing-Mating: 0.200" (5.08mm)
  • Contact Finish-Mating: Gold
  • Thickness-Mating: 15.0µin (0.38µm)
  • Contact Finish-Post: Tin
  • Insulation Height: 0.568" (14.43mm)
  • Temperature Range: -55°C to 105°C
