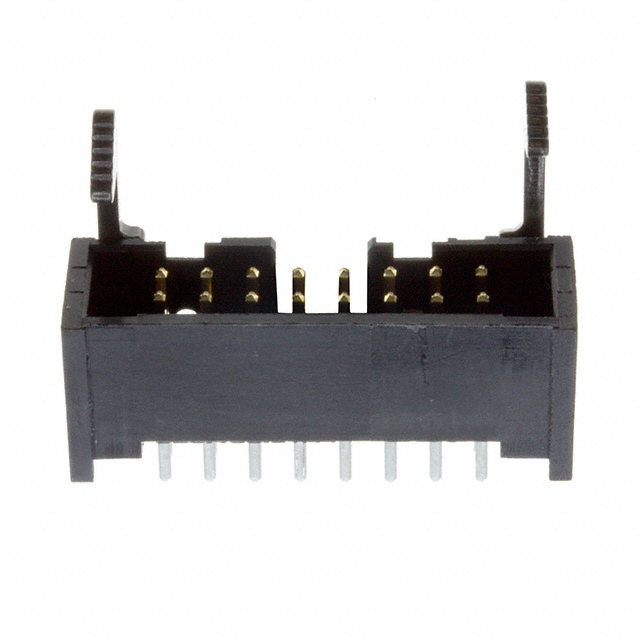

Same model may have multiple batches, images only for reference.

1761608-6

Name: 1761608-6
Brand: TE Connectivity
SKU: 760629
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1761608-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER LOPRO STR .100 16POS
Datasheet	1761608-6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Series	AMP-Latch
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Short
Contact Length - Mating	0.237" (6.02mm)
Contact Length - Post	0.102" (2.60mm)
Insulation Height	0.404" (10.26mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Keying Slot
Operating Temperature Range	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	1A per Contact
Voltage Rating	250VAC
Contact Finish Thickness - Post	100μin (2.54μm)
Win Source Part Number	760629-1761608-6
Popularity	Medium
Supply and Demand Status	Limited
Family Name	1761608
Introduction Date	September 29, 2009
ECCN	EAR99
Country of Origin	China
Halogen Free	Not Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian 1761608-6 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 760629-1761608-6 is a 16-position header connector with a through-hole mounting style and latch lock/eject hooks, short fastening type.

Positions: 16
Mounting Style: Through-Hole
Fastening Type: Latch Lock/Eject Hooks, Short
Voltage Rating: 250VAC
Current Rating: 1A per contact
Pitch: 0.100" (2.54mm)
Contact Finish: Gold or Gold-Palladium
Status: Active
Popularity: Medium
Supply and Demand Status: Limited
