Same model may have multiple batches, images only for reference.

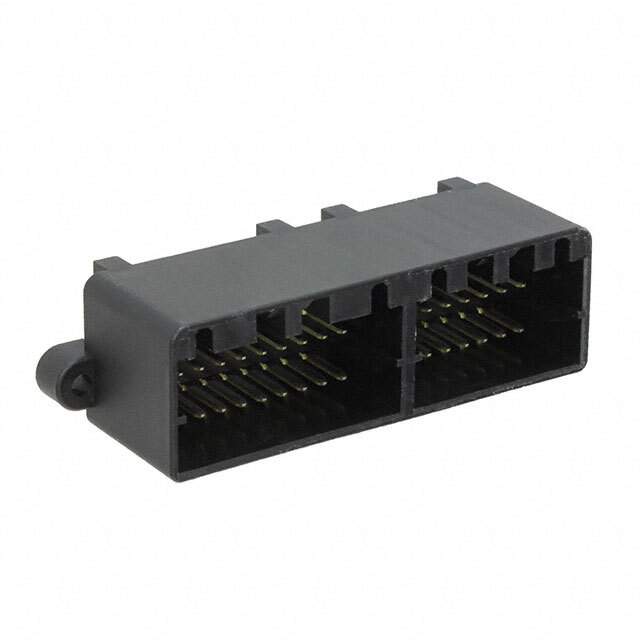

175977-2 Real Image
Same model may have multiple batches, images only for reference.

175977-2

Part No 175977-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT CAP 36POS VERT TIN
Datasheet
175977-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Multi-Lock
Packaging Bulk
Contact Type Tab
Pitch - Mating 0.098" (2.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 36
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.205" (5.20mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.276" (7.00mm)
Contact Length - Post 0.146" (3.70mm)
Insulation Height 0.815" (20.70mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Mounting Flange
Operating Temperature Range -30°C ~ 105°C
Insulation Color Black
Current Rating Varies by Wire Gauge
Applications Automotive, General Purpose
Win Source Part Number 760625-175977-2
Popularity Medium
Supply and Demand Status Limited
Family Name 175977
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 175977-2 CAD Model

Description

The TE Connectivity AMP Connectors Multi-Lock series connector is a through-hole mounting style connector with a pitch of 0.098 inches (2.50mm).

  • Series: Multi-Lock
  • Mounting Style: Through-hole
  • Pitch: 0.098 inches (2.50mm)
  • Positions: 36
  • Shrouding: 4 Walls
  • Features: Mounting Flange
  • Operating Temperature: -30°C to 105°C
  • Current Rating: Varies by wire gauge
  • Applications: Automotive, General Purpose
