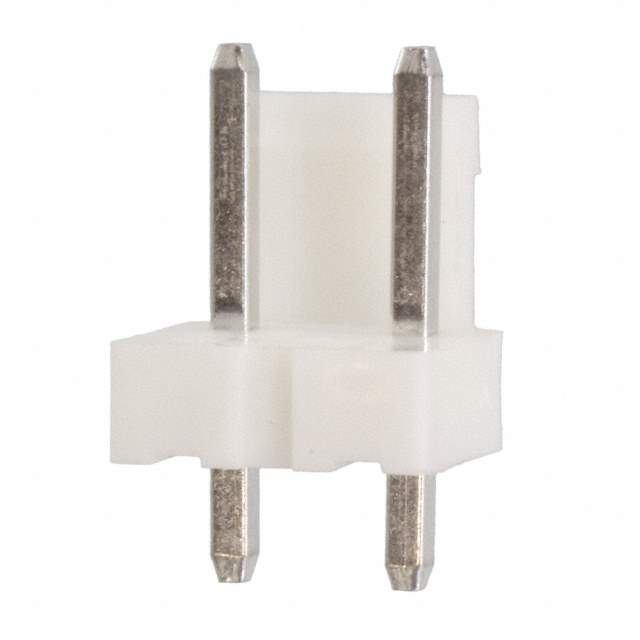

1744037-2 Real Image
Same model may have multiple batches, images only for reference.

1744037-2

Part No 1744037-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 5.08MM / Connector Header Through Hole 2 position 0.200" (5.08mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.200" (5.08mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.146" (3.70mm)
Overall Contact Length 0.575" (14.60mm)
Insulation Height 0.126" (3.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 120.0µin (3.05µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 7.5A
Voltage Rating 250VAC
Contact Finish Thickness - Post 120.0µin (3.05µm)
Applications General Purpose, Industrial, Lighting
Base Product Number 1744037
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -1744037-2-CSI,-1744037-2-SI,1744037-2-ND,A112698,2266-1744037-2
Standard Package 1,000
Win Source Part Number 1334342-1744037-2
Ultra Librarian 3D Model Ultra Librarian 1744037-2 CAD Model

Description

This electronic component is a TE Connectivity AMP Connectors product, a header with male pins.

  • Packaging: Bulk
  • Number of Positions: 2
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Number of Rows: 1
  • Termination: Solder
  • Fastening: Friction Lock
  • Contact Material: Copper Alloy
  • Voltage Rating: 250VAC
  • Application: General Purpose, Industrial, Lighting
  • ROHS3 Compliant: Yes
