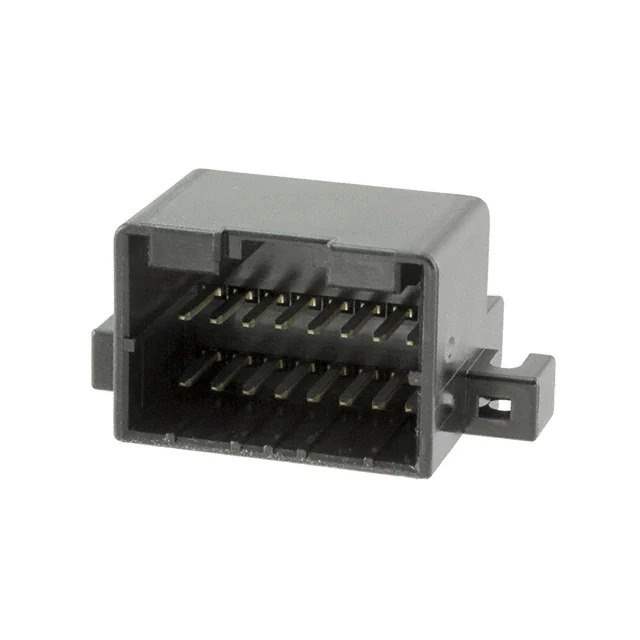

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Multi-Lock
Package Tube
Product Status Active
Contact Type Tab
Pitch - Mating 0.098" (2.50mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.205" (5.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.276" (7.00mm)
Contact Length - Post 0.157" (4.00mm)
Insulation Height 0.658" (16.71mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Mounting Flange
Temperature Range - Operating -30°C ~ 105°C
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Applications Automotive, General Purpose
Base Product Number 174053
Standard Package 70 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854158-174053-2
Ultra Librarian 3D Model Ultra Librarian 174053-2 CAD Model

Description

The Multi-Lock series 16-position male pin header connector is a versatile component designed for various applications in the automotive and general-purpose industries.

  • Mounting Type: Mounting Flange
  • Contact Type: Tab
  • Positions Loaded: All
  • Number of Rows: 2
  • Termination Method: Soldering
  • Fastening Type: Locking Ramp
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Connector Style: Board to Cable/Wire
  • Mating Pitch: 0.098 inches (2.50mm)
  • Contact Finish: Tin
  • Operating Temperature: -30°C to 105°C
