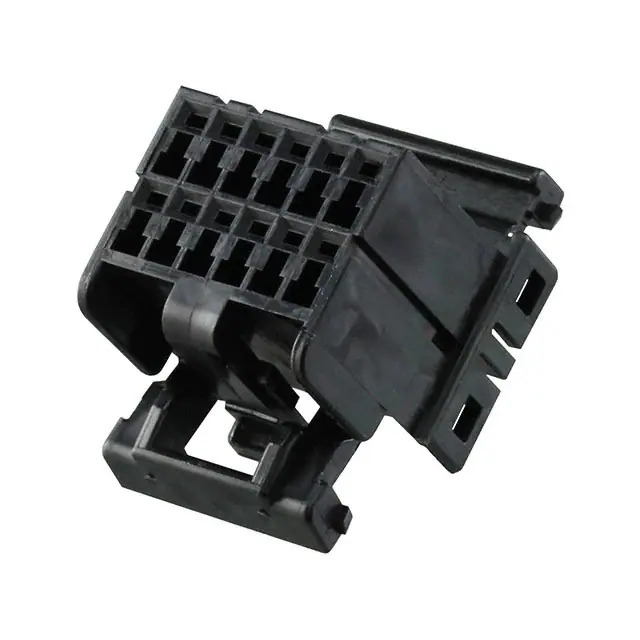

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Multi-Lock
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Female Socket
Number of Positions 12
Pitch 0.098" (2.50mm)
Number of Rows 2
Row Spacing 0.205" (5.20mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Holder
Color Black
Features -
Temperature Range - Operating -30°C ~ 105°C
Note Contacts Not Included
Base Product Number 174045
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1357298-174045-2
Ultra Librarian 3D Model Ultra Librarian 174045-2 CAD Model

Description

The TE Connectivity AMP Connectors Multi-Lock series offers a reliable solution for rectangular connector housings. Bold the product name Multi-Lock series and manufacturer TE Connectivity AMP Connectors.

  • Series: Multi-Lock
  • Connector Type: Plug
  • Termination: Crimp
  • Contact Type: Female Socket
  • Number of Positions: 12
  • Number of Rows: 2
  • Pitch: 0.098" (2.50mm)
  • Row Spacing: 0.205" (5.20mm)
  • Mounting Type: Free Hanging (In-Line)
  • Fastening Type: Latch Holder
  • Operating Temperature: -30°C to 105°C
  • Color: Black
  • Note: Contacts are not included
