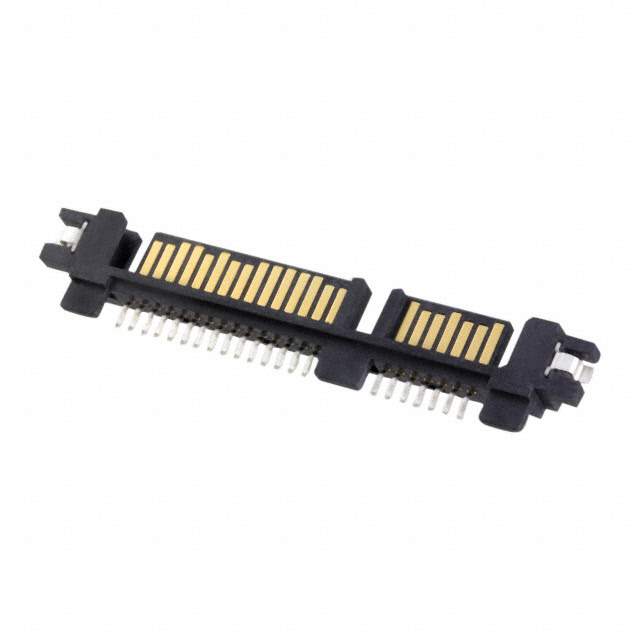

1735783-3 Real Image
Same model may have multiple batches, images only for reference.

1735783-3

Part No 1735783-3
Manufacturer TE Connectivity
Catalog Pluggable Connectors
Description CONN SATA PLUG 22POS SLD R/A SMD / 22 Position SATA Plug Connector Solder Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr TE Connectivity AMP Connectors
Series Slimlite
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Connector Style Plug
Connector Type SATA
Number of Positions 22
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 1735783
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A118058CT,A118058TR,-1735783-3-SI
Standard Package 5,600
Win Source Part Number 1172555-1735783-3
Ultra Librarian 3D Model Ultra Librarian 1735783-3 CAD Model

Description

The TE Connectivity AMP Connectors 1172555-1735783-3 is a 22 position plug connector with a SATA connector type. TE Connectivity AMP Connectors 1172555-1735783-3 is designed by .

  • Position Count: 22
  • Connector Type: SATA
  • Mounting Type: Surface Mount, Right-Angle
  • Termination: Solder Through
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Packaging: Tape & Reel (TR), Cut Tape (CT)
  • Standard Package: 5,600
  • ECCN: EAR99
  • Status: Obsolete
