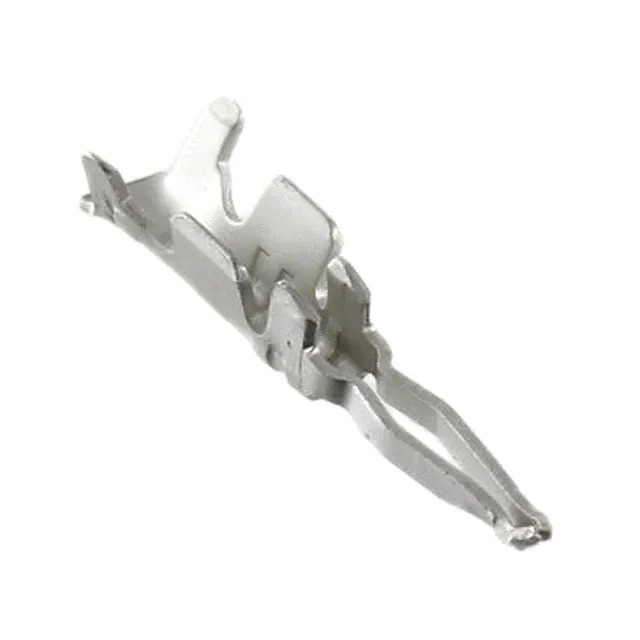

172781-3 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Wire to Board Connectors
Mfr TE Connectivity AMP Connectors
Series Mini Amp-In
Package Tape & Reel (TR)
Product Status Last Time Buy
Terminal Type Wire to Board
Hole Diameter 0.047" ~ 0.063" (1.19mm ~ 1.60mm)
Insulation Diameter 0.043" ~ 0.055" (1.10mm ~ 1.40mm)
Length - Overall 0.335" (8.50mm)
Wire Gauge 26-30 AWG
Contact Material Brass
Contact Finish Tin
Base Product Number 172781
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363301-172781-3
Ultra Librarian 3D Model Ultra Librarian 172781-3 CAD Model

Description

The TE Connectivity AMP Connectors Mini Amp-In series is a wire to board connector that is designed for use with 26-30 AWG wire.

  • Contact Finish: Tin
  • Contact Material: Brass
  • Overall Length: 0.335" (8.50mm)
  • Terminal Type: Wire to Board
  • Insulation Diameter: 0.043" to 0.055" (1.10mm to 1.40mm)
  • Hole Diameter: 0.047" to 0.063" (1.19mm to 1.60mm)
  • Packaging: Tape & Reel (TR)
  • Product Status: Last Time Buy
  • Base Product Number: 172781
  • ECCN: EAR99
  • HTSUS: 8536.90.4000
  • REACH Status: Undefined
