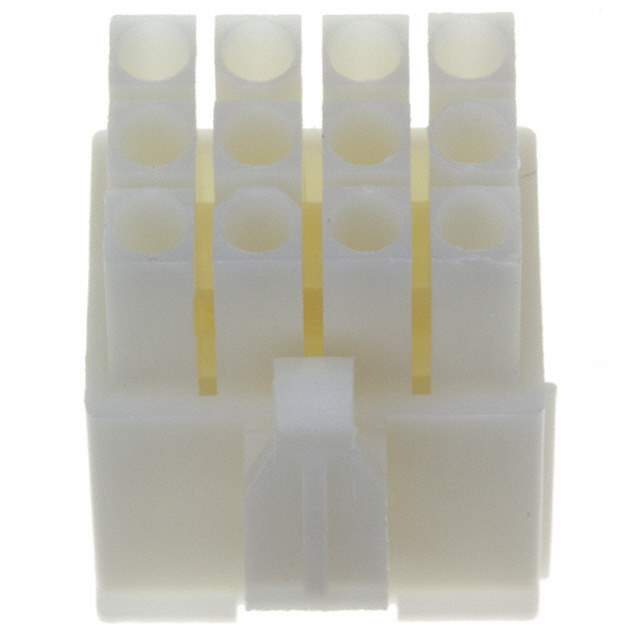

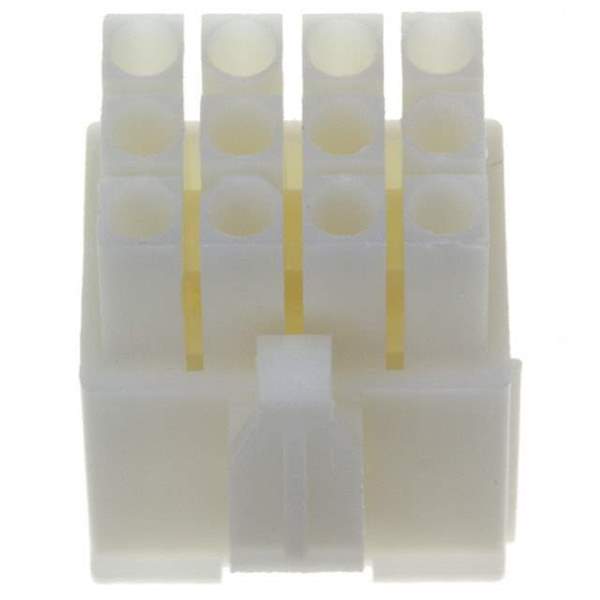

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Connector Type Plug
Contact Type Male or Female
Number of Positions 12
Pitch 0.163" (4.14mm)
Number of Rows 3
Row Spacing 0.163" (4.14mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number 172170
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names 1721701,-172170-1-CSI,A25703,2266-172170-1,-172170-1-SI,-172170-1-LSI
Standard Package 500
Win Source Part Number 1005852-172170-1
Ultra Librarian 3D Model Ultra Librarian 172170-1 CAD Model

Description

TE Connectivity AMP Connectors' Mini-Universal MATE-N-LOK rectangular connector housing, part number 1005852-172170-1, is a natural-colored, 12-position housing with a pitch of 0.163" (4.14mm).

  • Positions: 12
  • Pitch: 0.163" (4.14mm)
  • Color: Natural
  • Rows: Three
  • Row Spacing: 0.163" (4.14mm)
  • Housing Type: Plug
  • Fastening Type: Latch Lock
  • Contact Termination: Crimp
  • Contacts Included: No
  • Package: Standard Package of 500
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
