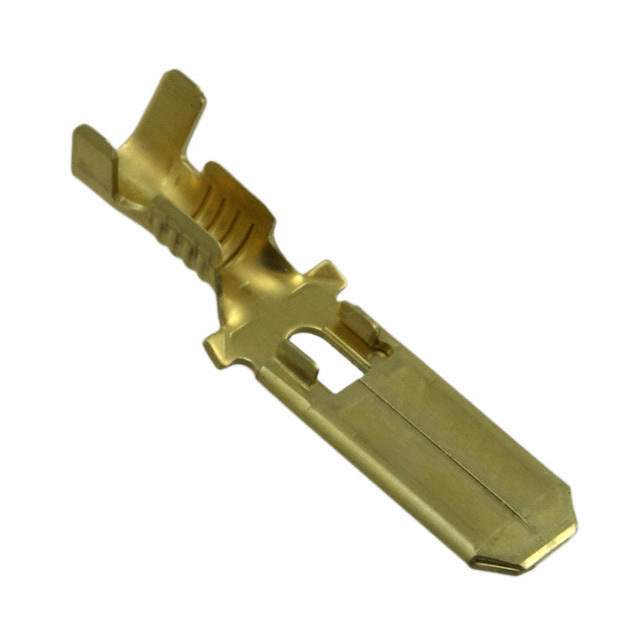

170340-1 Real Image
Same model may have multiple batches, images only for reference.

170340-1

Part No 170340-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC TAB 14-20AWG 0.250 CRIMP  /  0.250" (6.35mm) Quick Connect Male 14-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series 250
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.543" (13.80mm)
Length - Overall 0.957" (24.30mm)
Termination Crimp
Wire Gauge 14-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Insulation Diameter 0.083" ~ 0.134" (2.11mm ~ 3.40mm)
Base Product Number 170340
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 1703401,A100472CT,170340-1-ND,A100472TR,-170340-1-SI,-170340-1-CSI
Standard Package 4,000
Win Source Part Number 1161229-170340-1
Ultra Librarian 3D Model Ultra Librarian 170340-1 CAD Model

Description

The 170340-1 from TE Connectivity AMP Connectors is a 250 series quick disconnect connector with a crimp termination.

  • Termination: Crimp
  • Package: Tape & Reel (TR) or Cut Tape (CT)
  • Wire Gauge: 14-20 AWG
  • Contact Material: Brass
  • Gender: Male
  • Standard Package: 4,000
  • Terminal Type: Standard
  • Application: Free Hanging (In-Line)
  • RoHS Compliant: Yes
  • ECCN: EAR99
