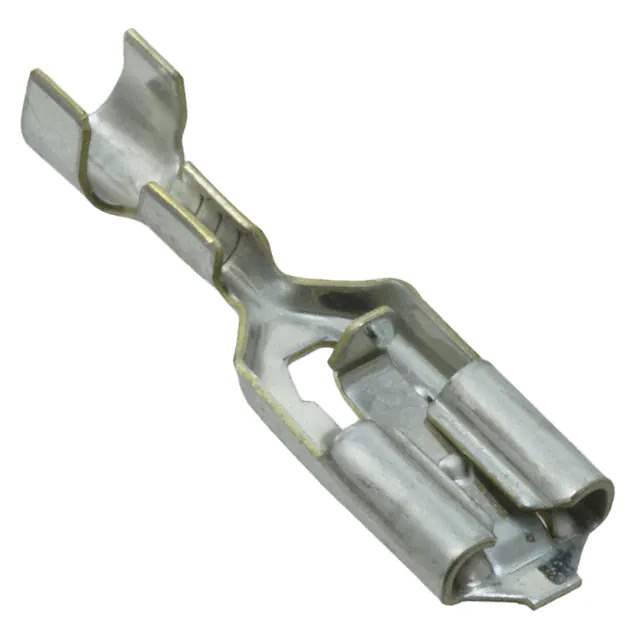

170330-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity
Series Mark II
Package Bulk
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Length - Overall 0.850" (21.59mm)
Termination Crimp
Wire Gauge 20-24 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.059" ~ 0.106" (1.50mm ~ 2.69mm)
Base Product Number 170330
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 854108-170330-1
Ultra Librarian 3D Model Ultra Librarian 170330-1 CAD Model

Description

The Mark II series of quick disconnect connectors is a reliable and efficient solution for your electrical connection needs.

  • Connector Type: Female
  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 20-24 AWG
  • Overall Length: 0.850 inches (21.59mm)
  • Tab Width: 0.187 inches (4.75mm)
  • Tab Thickness: 0.020 inches (0.51mm)
  • Insulation Diameter: 0.059 inches to 0.106 inches (1.50mm to 2.69mm)
  • Insulated: Non-Insulated
  • Mounting Type: Free Hanging (In-Line)
  • Manufacturer: TE Connectivity
  • Base Product Number: 170330
  • Standard Package: 1,000 Pieces
