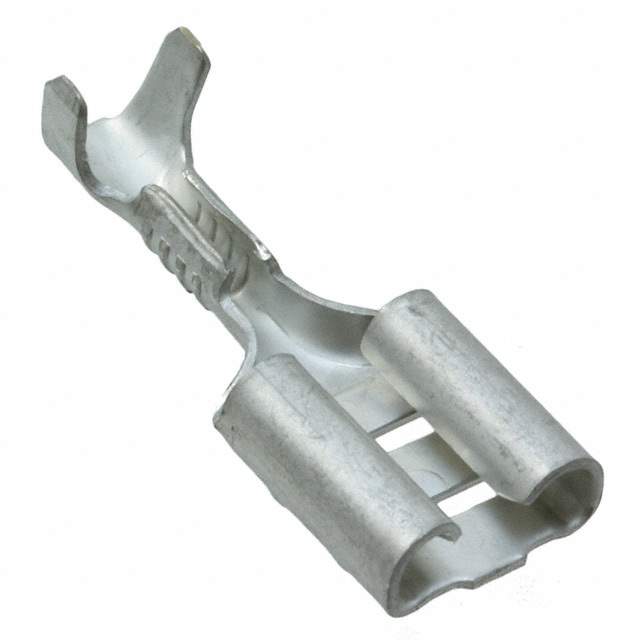

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.031" (0.79mm)
Tab Length 0.305" (7.75mm)
Length - Overall 0.750" (19.05mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
Base Product Number 170183
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names A107175CT,-170183-2-SI,1701832,-170183-2-CSI,170183-2-ND,A107175TR
Standard Package 5,000
Win Source Part Number 1013565-170183-2
Ultra Librarian 3D Model Ultra Librarian 170183-2 CAD Model

Description

This electronic component is a connector manufactured by TE Connectivity AMP Connectors and is a female terminal type with a tab width of 0.250" (6.35mm) and a tab thickness of 0.031" (0.79mm).

  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.031" (0.79mm)
  • Insulation Diameter: 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
  • Mounting Type: Free Hanging (In-Line)
  • Length: 0.750" (19.05mm)
  • Tab Length: 0.305" (7.75mm)
  • Package: Tape & Reel (TR), Cut Tape (CT)
  • Standard Package: 5,000
