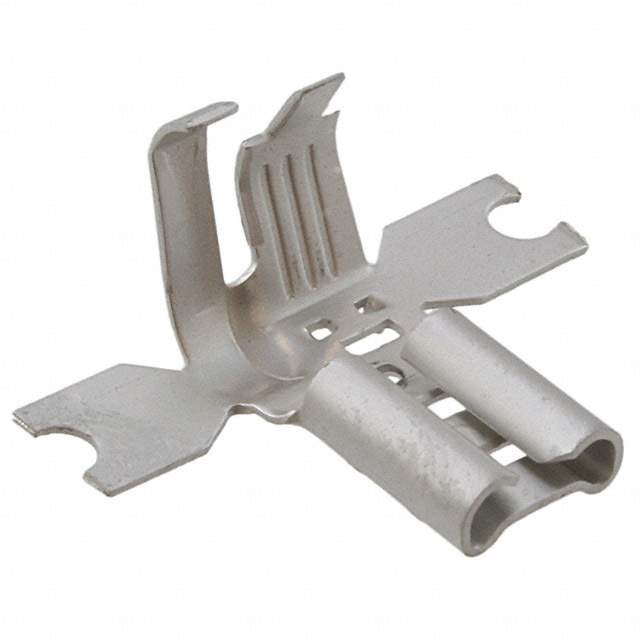

170140-2 Real Image
Same model may have multiple batches, images only for reference.

170140-2

Part No 170140-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 16-20AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 16-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line), Right Angle
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.110" ~ 0.170" (2.79mm ~ 4.32mm)
Base Product Number 170140
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 170140-2-ND,A107174CT,-170140-2-CSI,1701402,-170140-2-SI,Q2645114,A107174TR,2266-170140-2TR
Standard Package 7,000
Win Source Part Number 1333600-170140-2
Ultra Librarian 3D Model Ultra Librarian 170140-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333600-170140-2 is a female quick disconnect connector with a crimp termination.

  • Wire Gauge: 16-20 AWG
  • Tab Width: 0.187" (4.75mm)
  • Insulation: Non-Insulated
  • Terminal Type: Angled - 90°, Flag
  • Packaging: Reel - TR
  • Standard Package: 7,000
