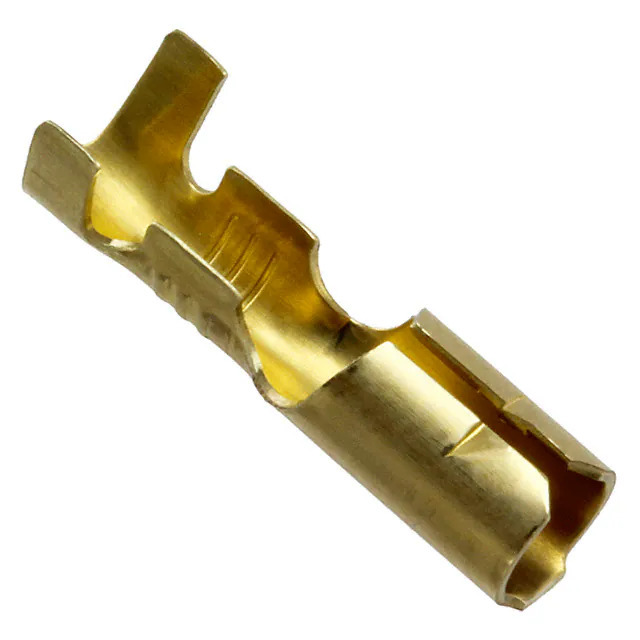

170003-5 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Barrel, Bullet Connectors
Mfr TE Connectivity AMP Connectors
Series Shur-Plug
Package Tape & Reel (TR)
Product Status Active
Terminal Type Female, Receptacle (Socket)
Diameter - Barrel 0.156" (3.96mm)
Wire Gauge 14-20 AWG
Length - Overall 0.693" (17.60mm)
Length - Barrel 0.252" (6.40mm)
Insulation Non-Insulated
Termination Crimp
Features -
Contact Material Brass
Contact Finish Tin
Color -
Insulation Diameter 0.098" ~ 0.150" (2.50mm ~ 3.81mm)
Material - Insulation -
Base Product Number 170003
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363006-170003-5
Ultra Librarian 3D Model Ultra Librarian 170003-5 CAD Model

Description

The TE Connectivity AMP Connectors Shur-Plug series offers a reliable solution for barrel, bullet connectors.

  • Series: Shur-Plug
  • Packaging: Tape & Reel
  • Terminal Type: Female, Receptacle (Socket)
  • Wire Gauge: 14-20 AWG
  • Contact Finish: Tin
  • Termination: Crimp
  • Insulation: Non-Insulated
  • Contact Material: Brass
  • Product Status: Active
  • HTSUS Code: 8536.90.4000
  • Overall Length: 0.693" (17.60mm)
  • Barrel Diameter: 0.156" (3.96mm)
