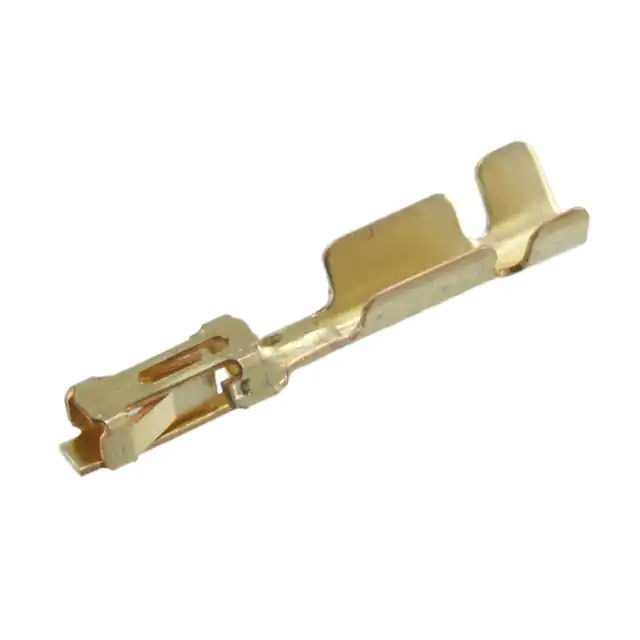

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod IV
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 20-24 AWG
Contact Finish Gold
Contact Finish Thickness 31.5µin (0.80µm)
Base Product Number 167301
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363401-167301-4
Ultra Librarian 3D Model Ultra Librarian 167301-4 CAD Model

Description

The TE Connectivity AMP Connectors AMPMODU Mod IV series rectangular connector contacts are reliable and high-quality components for various electronic applications.

  • Contact Type: Socket
  • Termination Method: Crimp
  • Wire Gauges: 20-24 AWG
  • Contact Finish: Gold
  • Contact Finish Thickness: 31.5µin (0.80µm)
  • Series: AMPMODU Mod IV
  • Product Line: Active
  • Packaging: Tape & Reel
  • ECCN: EAR99
