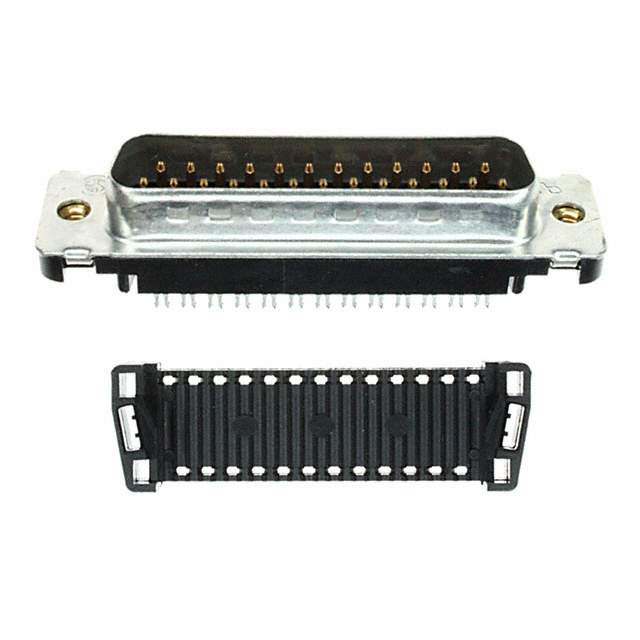

1658608-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDF-20
Package Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination IDC, Ribbon Cable
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1.25A
Features Feed Through, Grounding Indents
Color Black
Dielectric Material Thermoplastic
Wire Gauge 26-28 AWG, Stranded or Solid
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 1658608
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4051
Other Names AML25B,2266-1658608-2,16586082,-1658608-2-SI
Standard Package 40
Win Source Part Number 1024256-1658608-2
Ultra Librarian 3D Model Ultra Librarian 1658608-2 CAD Model

Description

The TE Connectivity AMP Connectors 1024256-1658608-2 is a male pin plug D-sub connector designed for connectors and interconnects.

  • Positions: 25
  • Color: black
  • Connector Type: feed through with grounding indents
  • Contact Type: signal
  • ECCN: EAR99
  • Current Rating: 1.25A
