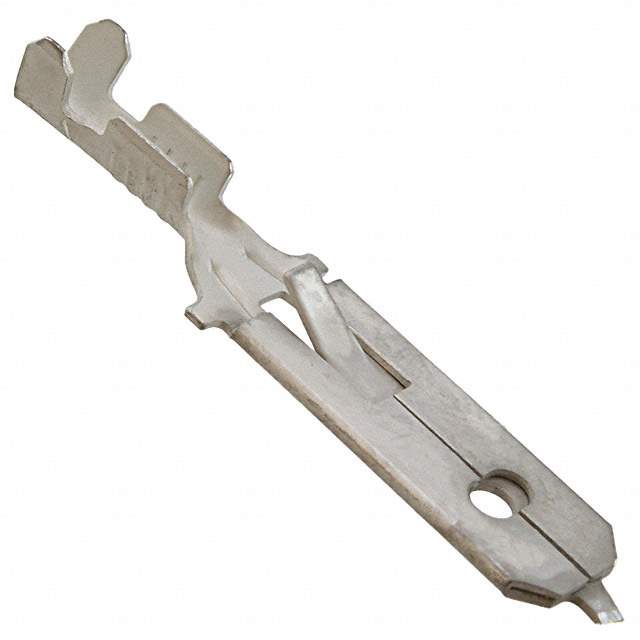

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.620" (15.75mm)
Length - Overall 1.102" (27.99mm)
Termination Crimp
Wire Gauge 17-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.055" ~ 0.091" (1.40mm ~ 2.31mm)
Base Product Number 160859
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 1608592,-160859-2-SI,160859-2-ND,A107074TR,A107074CT
Standard Package 3,500
Win Source Part Number 1133526-160859-2
Ultra Librarian 3D Model Ultra Librarian 160859-2 CAD Model

Description

The TE Connectivity AMP Connectors Fastin-Faston 160859-2 is a male quick disconnect terminal that is designed for use with 17-20 AWG wire gauge.

  • Wire Gauge: 17-20 AWG
  • Contact Material: brass
  • Contact Finish: tin
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.620" (15.75mm)
  • Insulation Diameter: 0.055" ~ 0.091" (1.40mm ~ 2.31mm)
  • Insulated: non-insulated
  • Mounting: free hanging (in-line)
  • Standard Package: 3,500
