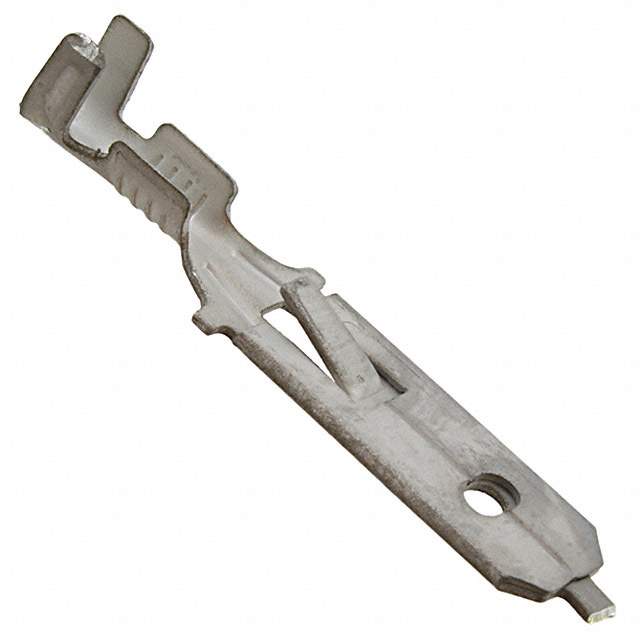

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 1.102" (28.00mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.087" ~ 0.126" (2.21mm ~ 3.20mm)
Base Product Number 160645
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 1606452,160645-2-ND,A107070TR,A107070CT
Standard Package 4,000
Win Source Part Number 985446-160645-2
Ultra Librarian 3D Model Ultra Librarian 160645-2 CAD Model

Description

This is a male faston terminal from TE Connectivity AMP Connectors.

  • Contact Finish: Tin
  • Wire Gauge: 18-22 AWG
  • Terminal Type: Standard
  • Overall Length: 1.102 inches (28.00mm)
  • Insulation: Non-Insulated
  • Tab Width: 0.250 inches (6.35mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Insulation Diameter: 0.087 inches to 0.126 inches (2.21mm to 3.20mm)
  • Mounting Type: Free Hanging (In-Line)
  • REACH: Unaffected
  • HTSUS: 8536.90.4000
