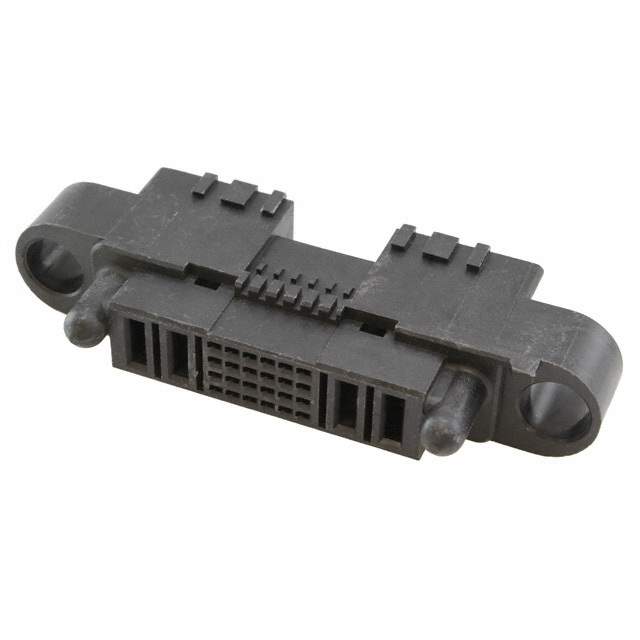

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Housing for Female Sockets and Blade Sockets
Connector Style Multi-Beam
Number of Positions 28 (24 + 4 Power)
Mounting Style Panel Mount
Connector Usage Receptacle
Features Guide Pin
Color Black
Note Contacts Not Included
Manufacturer Pack Quantity 180
MSL Level 1 (Unlimited)
Win Source Part Number 1121391-1600636-2
Manufacturer Homepage www.te.com/usa-en/home.html
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1600636-2 CAD Model

Description

The 1121391-1600636-2 is a panel mount housing for female sockets and blade sockets. The connector has 28 positions, 24 of which are for signal and 4 for power. The TE Connectivity AMP Connectors 1121391-1600636-2

  • Positions: 28
  • Signal Positions: 24
  • Power Positions: 4
  • Contacts Included: No
  • Connector Style: Multi-Beam
  • Color: Black
  • Guide Pin: Yes
  • Supply and Demand: Limited
  • MSL Level: 1 (unlimited)
  • Manufacturer Pack Quantity: 180
