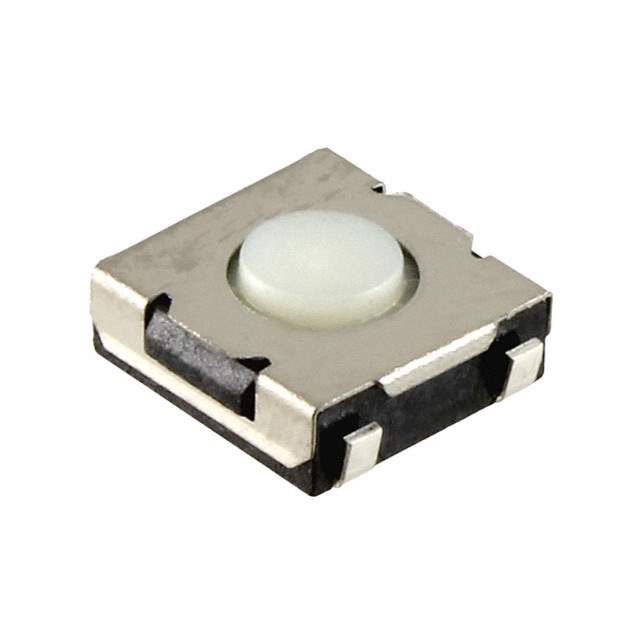

1571625-1 Real Image
Same model may have multiple batches, images only for reference.

1571625-1

Part No 1571625-1
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series Extended Life
Package Tray
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.20mm x 6.20mm
Illumination Non-Illuminated
Operating Force 50gf
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Thermoplastic
Switch Travel 0.20mm
Mechanical Life 2,000,000 Cycles
Base Product Number 1571625
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9031
Other Names 450-1831,2266-1571625-1,1571625-1-ND,-1571625-1-SI
Standard Package 2,000
Win Source Part Number 1228033-1571625-1
Ultra Librarian 3D Model Ultra Librarian 1571625-1 CAD Model

Description

The Extended Life series tactile switch from TE Connectivity ALCOSWITCH Switches is a high-quality switch that is perfect for a variety of applications.

  • Series: Extended Life
  • Termination Style: J-Lead
  • Mounting Type: SMD (SMT)
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.20mm
  • Contact Rating: 0.05A @ 24VDC
  • Actuator Orientation: Top Actuated
  • Outline: 6.20mm x 6.20mm
  • Operating Force: 50gf
  • Mechanical Life: 2,000,000 cycles
  • Temperature Range: -35°C to 85°C
  • Actuator Height: 2.50mm
  • Illumination: Non-Illuminated
  • Ingress Protection: None
  • Package: Tray
  • Standard Package: 2,000
