Same model may have multiple batches, images only for reference.

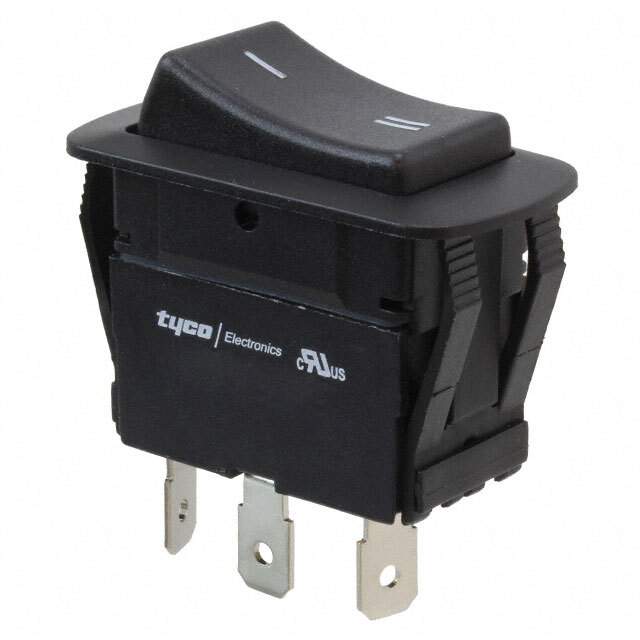

1571100-2 Real Image
Same model may have multiple batches, images only for reference.

1571100-2

Part No 1571100-2
Manufacturer TE Connectivity
Catalog Rocker Switches
Description SWITCH ROCKER SPDT 20A 125V  /  Rocker Switch SPDT 20A (AC) 125 V Panel Mount, Snap-In
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series PRC
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 20A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking - =
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection IP66 - Dust Tight, Water Resistant
Panel Cutout Dimensions Rectangular - 36.60mm x 21.20mm
Temperature Range - Operating -20°C ~ 85°C
Mechanical Life 100,000 Cycles
Electrical Life 6,000 Cycles
Base Product Number 1571100
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Other Names -PRCSD1-20F-BB0DW-SI,1571100-2-ND,450-1821,2266-1571100-2,PRCSD1-20F-BB0DW,-PRCSD1-20F-BB0DW-SI-ND,-1571100-2-SI
Standard Package 500
Win Source Part Number 1034555-1571100-2
Ultra Librarian 3D Model Ultra Librarian 1571100-2 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches 1571100-2 is a SPDT rocker switch with a quick connect termination style of 0.250 inches (6.3mm).

  • Termination Style: Quick connect - 0.250 inches (6.3mm)
  • Voltage Rating: 125V AC
  • Ingress Protection: IP66, dust tight and water resistant
  • Switch Function: On-On
  • Actuator Type: Concave (curved)
  • Mechanical Life: 100,000 cycles
  • Electrical Life: 6,000 cycles
