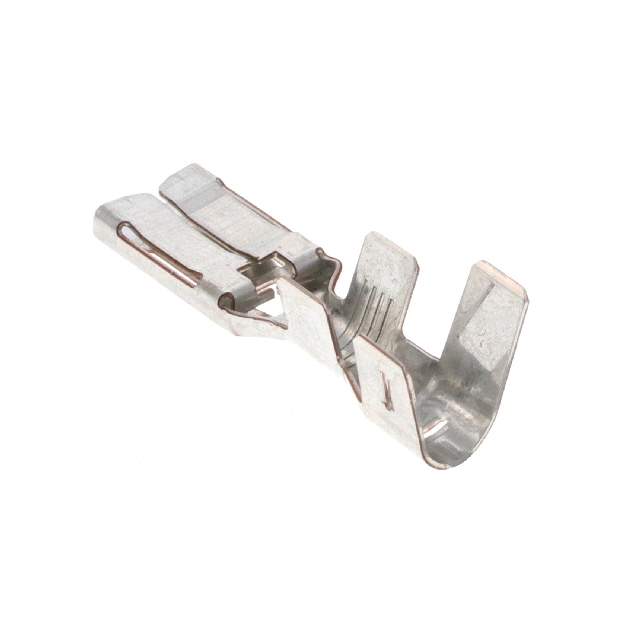

Same model may have multiple batches, images only for reference.

1544228-1

Name: 1544228-1
Brand: TE Connectivity
SKU: 995329
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1544228-1
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN QC RCPT 7-9AWG 0.315 CRIMP / 0.315" (8.00mm) Quick Connect Female 7-9 AWG Crimp Connector Non-Insulated
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr	TE Connectivity AMP Connectors
Series	PRONER
Package	Tape & Reel (TR),Cut Tape (CT)
Terminal Type	Standard
Gender	Female
Tab Width	0.315" (8.00mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	0.433" (11.00mm)
Length - Overall	1.433" (36.40mm)
Termination	Crimp
Wire Gauge	7-9 AWG
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Contact Material	Copper Alloy
Contact Finish	Tin
Insulation Diameter	0.193" ~ 0.237" (4.90mm ~ 6.02mm)
Base Product Number	1544228
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	-P79101792761-SI-ND,17-1544228-1CT,1544228-1-ND,-P79101792761-SI,-P79101792761-LSI-ND,-P79101792761-CSI-ND,-P79101792761-LSI,-P79101792761-CSI,17-1544228-1TR,-1544228-1-CSI,-1544228-1-LSI,-1544228-1-SI
Standard Package	900
Win Source Part Number	995329-1544228-1
Ultra Librarian 3D Model	Ultra Librarian 1544228-1 CAD Model

Alternative Products

Description

The 995329-1544228-1 is a female quick disconnect connector from TE Connectivity AMP Connectors.

Gender: Female
Connector Type: Quick Disconnect
Insulation: Non-Insulated
Tab Width: 0.315 inches
Tab Thickness: 0.032 inches
Mounting Type: Free Hanging (In-Line)
Termination: Crimp
