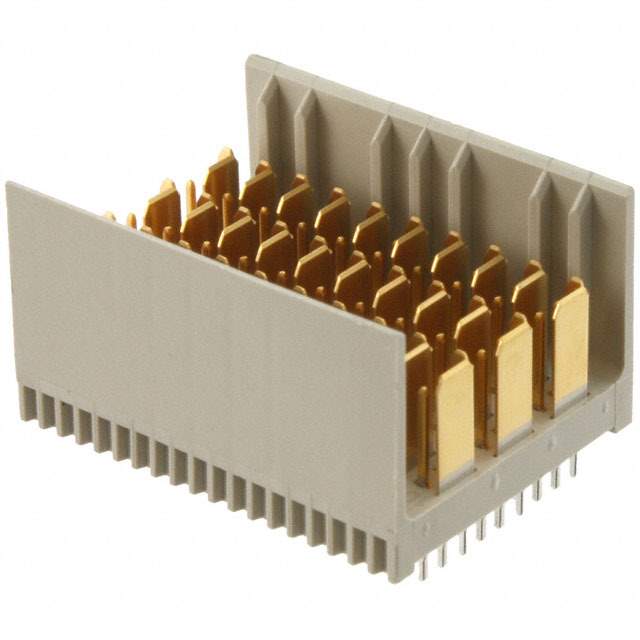

1469083-1 Real Image
Same model may have multiple batches, images only for reference.

1469083-1

Part No 1469083-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HEADER 60POS VERT HM-ZD
Datasheet
1469083-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Obsolete(EOL)
Connector Type Header, Male Pins and Blades
Connector Style High Speed
Number of Positions 90
Number of Positions Loaded All
Pitch 0.098" (2.50mm)
Number of Rows 6
Number of Columns 10
Mounting Through Hole
Termination Press-Fit
Contact Layout, Typical 60 Signal, 30 Ground
Features Shielded
Contact Finish Gold
Contact Finish Thickness 50μin (1.27μm)
Material Flammability Rating UL94 V-0
Temperature Range - Operating -65°C to 105°C
Voltage Rating 250V
Win Source Part Number 197293-1469083-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1469083-1 CAD Model

Description

1469083-1 Connector

The 1469083-1 is a versatile and reliable connector designed for use in a wide range of electronic applications. Its robust construction ensures long-lasting performance, making it ideal for both industrial and commercial projects.

  • Features and Benefits
    • Durable materials for extended service life
    • Easy installation with secure connections
    • Compact design suitable for space-constrained environments
  • Applications
    • Automotive electronics
    • Consumer electronics
    • Industrial machinery
    • Telecommunications equipment
