Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series RZ, SCHRACK
Package Tube
Mounting Type Through Hole
Coil Voltage 9VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12 A
Switching Voltage 400VAC - Max
Coil Current 44.4 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 6.3 VDC
Must Release Voltage 0.9 VDC
Operate Time 8 ms
Release Time 6 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 200 Ohms
Base Product Number 1415899
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Other Names RZ01-1C4-D009,2266-1415899-9,PB1272,-1415899-9-SI,RZ011C4D009
Standard Package 20
Win Source Part Number 974797-1415899-9
Ultra Librarian 3D Model Ultra Librarian 1415899-9 CAD Model

Description

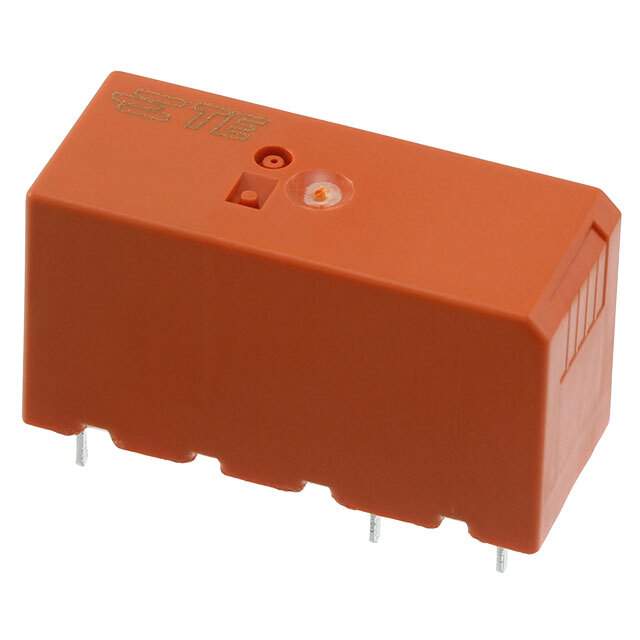

The TE Connectivity Potter & Brumfield Relays RZ01-1C4-D009 is a high-quality power relay that is designed for use in a wide range of applications.

  • Type: SPDT (1 Form C)
  • Contact Rating: 12A
  • Switching Voltage: 400VAC - Max
  • Coil Voltage: 9VDC
  • Coil Resistance: 200 Ohms
  • Operate Time: 8ms
  • Release Time: 6ms
  • Mounting Type: through-hole
  • Operating Temperature: -40°C to 85°C
  • Supply and Demand: balanced
  • RoHS: non-compliant
