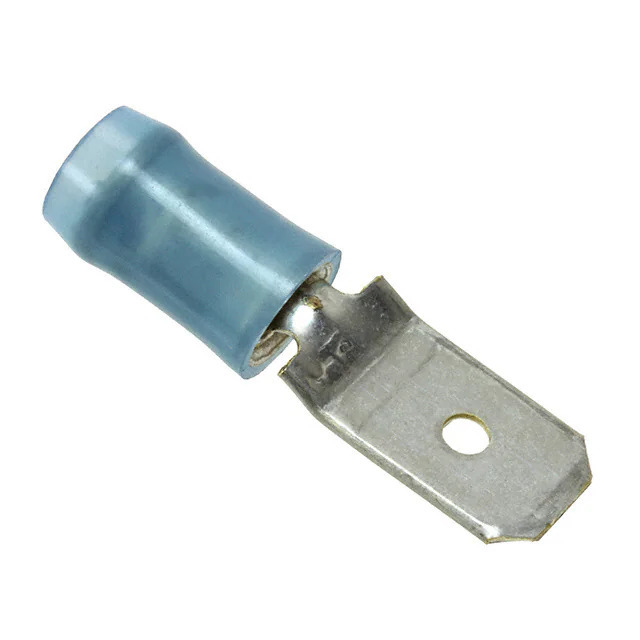

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston, PIDG
Package Bulk
Product Status Active
Terminal Type Standard
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.370" (9.40mm)
Length - Overall 0.925" (23.50mm)
Termination Crimp
Wire Gauge 13-17 AWG
Insulation Non-Mating End Insulated
Mounting Type Free Hanging (In-Line)
Features Serrated Termination
Color Blue
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.154" (3.91mm)
Base Product Number 140971
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365076-140971-2
Ultra Librarian 3D Model Ultra Librarian 140971-2 CAD Model

Description

The 1365076-140971-2 is a quick disconnect connector from TE Connectivity AMP Connectors.

  • Category: Terminals
  • Mounting Style: Free Hanging (In-Line)
  • Termination Feature: Serrated
  • Base Product Number: 140971
  • Wire Gauge: 13-17 AWG
  • Contact Finish: Tin
  • Non-Mating End Insulation: Insulated
  • Overall Length: 0.925" (23.50mm)
  • Color: Blue
  • Termination Type: Crimp
  • Contact Material: Brass
