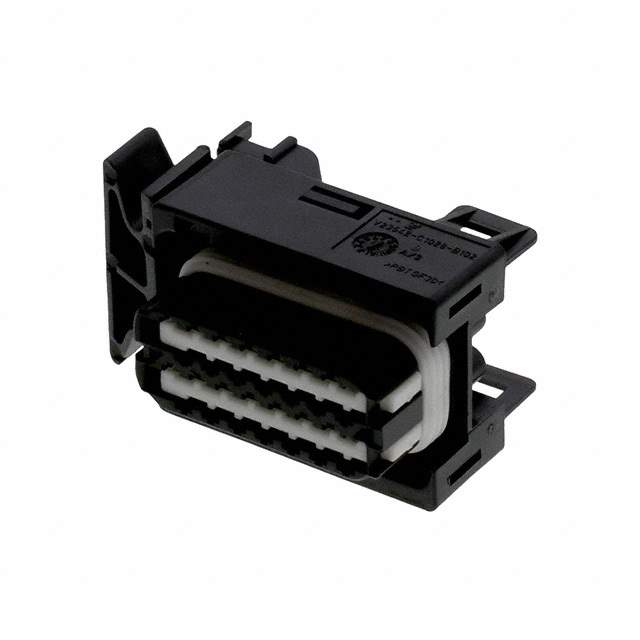

1393436-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Junior Power Timer
Package Box
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 28
Pitch 0.169" (4.30mm)
Number of Rows 4
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Black
Features Sealed
Note Contacts Not Included
Base Product Number 1393436
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Names -V23542C1028B102-LSI,-V23542C1028B102-LSI-ND,V23542C1028B102,-V23542C1028B102-CSI-ND,-V23542C1028B102-CSI,-1393436-2-CSI,A127947,1393436-2-ND,-1393436-2-LSI,2266-1393436-2
Standard Package 360
Win Source Part Number 1041504-1393436-2
Ultra Librarian 3D Model Ultra Librarian 1393436-2 CAD Model

Description

The TE Connectivity AMP Connectors 1041504-1393436-2 is a Junior Power Timer receptacle connector with 28 positions.

  • Positions: 28
  • Pitch: 0.169" (4.30mm)
  • Color: Black
  • Sealed: Yes
  • Contact Termination: Crimp
  • ECCN: EAR99
  • HTSUS: 8536.69.8000
