1379684-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1379684-1

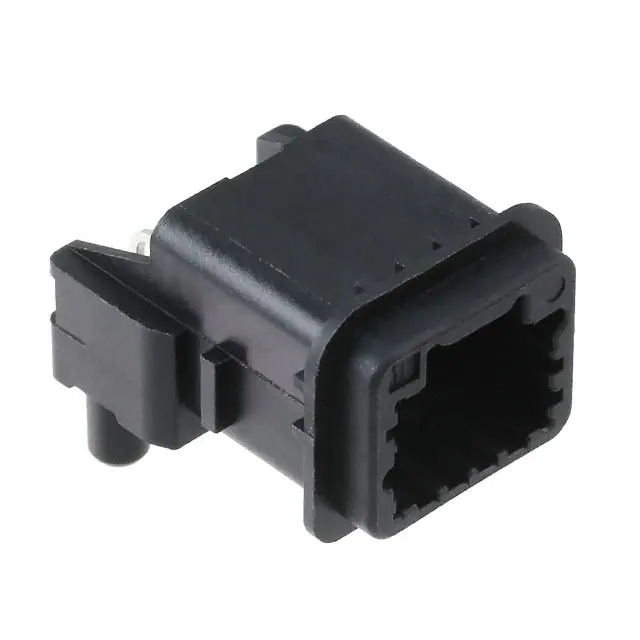

Part No 1379684-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 2.2MM / Connector Header Panel Mount, Through Hole, Right Angle 8 position 0.087" (2.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series -
Package Tray
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating -
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.598" (15.19mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide, Board Lock
Temperature Range - Operating -30°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 HB
Insulation Color Black
Current Rating (Amps) -
Voltage Rating 12VDC
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive
Base Product Number 1379684
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364275-1379684-1
Ultra Librarian 3D Model Ultra Librarian 1379684-1 CAD Model

Description

The TE Connectivity AMP Connectors header is a board-to-cable/wire connector with a pitch of 0.087" (2.20mm).

  • Pitch: 0.087" (2.20mm)
  • Positions: 8
  • Rows: 2
  • Row Spacing: 0.118" (3.00mm)
  • Shrouded: 4 Walls
  • Mounting Type: Panel Mount, Through-Hole, Right-Angle
  • Termination: Solder
  • Contact Material: Copper Alloy
  • Insulation Material: Polybutylene Terephthalate (PBT) with Glass Filling
  • Flammability Rating: UL94 HB
  • Insulation Color: Black
  • Voltage: 12VDC
  • Application: Automotive
  • Product Status: Obsolete
  • HTSUS: 8536.69.4040
  • ECCN: EAR99
