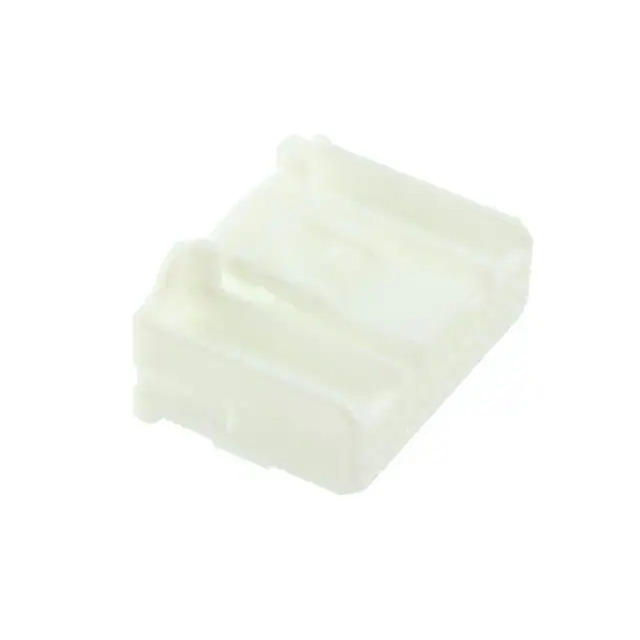

1318917-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series .025
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Female Socket
Number of Positions 24
Pitch 0.087" (2.20mm)
Number of Rows 2
Row Spacing 0.118" (3.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Features -
Temperature Range - Operating -30°C ~ 105°C
Note Contacts Not Included
Base Product Number 1318917
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365657-1318917-1
Ultra Librarian 3D Model Ultra Librarian 1318917-1 CAD Model

Description

The TE Connectivity AMP Connectors Rectangular Connector Housing is a high-quality connector designed for use in various electronic applications. TE Connectivity AMP Connectors manufactures it.

  • Temperature Range: -30°C to 105°C
  • Connector Type: Plug
  • Contact Termination: Female Socket
  • Positions: 24
  • Rows: 2
  • Fastening Type: Locking Ramp
  • Contacts Included: No
  • Pitch: 0.087" (2.20mm)
  • Row Spacing: 0.118" (3.00mm)
  • Series: .025
