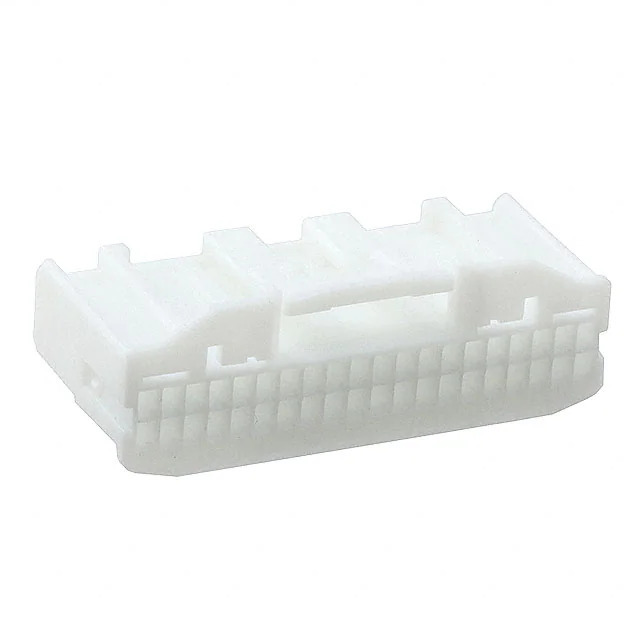

1318389-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1318389-1

Part No 1318389-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PLUG HSG 40POS 2.20MM / 40 Rectangular Connectors - Housings Plug Natural 0.087" (2.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series .025
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Female Socket
Number of Positions 40
Pitch 0.087" (2.20mm)
Number of Rows 2
Row Spacing 0.118" (3.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Features -
Temperature Range - Operating -30°C ~ 105°C
Note Contacts Not Included
Base Product Number 1318389
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365444-1318389-1
Ultra Librarian 3D Model Ultra Librarian 1318389-1 CAD Model

Description

The TE Connectivity AMP Connectors 1365444-1318389-1 is a rectangular connector housing in the .025 series.

  • Product Category: Connectors, Interconnects
  • Operating Temperature: -30°C ~ 105°C
  • Mounting Type: Free Hanging (In-Line)
  • Pitch: 0.087" (2.20mm)
  • Fastening Type: Locking Ramp
  • Connector Type: Plug
  • Number of Positions: 40
  • Number of Rows: 2
  • Termination: Crimp
  • Contact Type: Female Socket
  • Color: Natural
  • Packaging: Bulk
  • Note: Contacts Not Included
