Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-2100
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.098" (2.50mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.148" (3.75mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.700" (17.78mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5A
Voltage Rating 250V
Applications General Purpose, Industrial
Base Product Number 1318124
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A29808-NDR,13181241,-1318124-1-CSI,2266-1318124-1,A29808,-1318124-1-SI
Standard Package 46
Win Source Part Number 1195368-1318124-1
Ultra Librarian 3D Model Ultra Librarian 1318124-1 CAD Model

Description

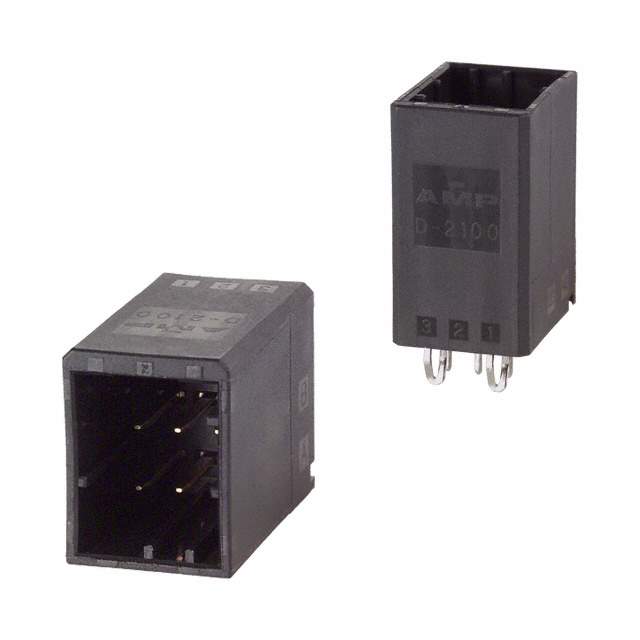

The TE Connectivity AMP Connectors Dynamic D-2100 series header is a board-to-board or cable connector from TE Connectivity AMP Connectors.

  • Positions: 6
  • Fastening Type: Detent Lock
  • Loaded: All Positions
  • Rows: 2
  • Pitch-Mating: 0.098" (2.50mm)
  • Mounting Type: Through-Hole
  • Voltage Rating: 250V
  • Current Rating: 5A
  • Contact Finish-Mating: Gold
  • Board Lock Feature: Yes
