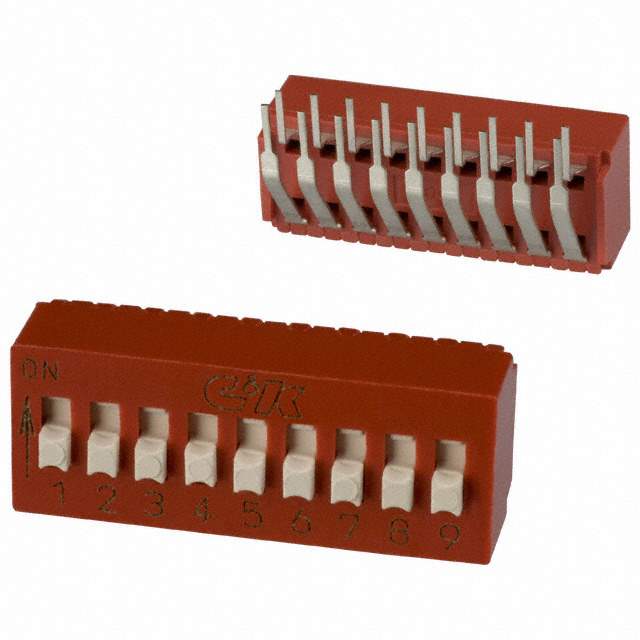

BD09AV Real Image
Same model may have multiple batches, images only for reference.

BD09AV

Part No BD09AV
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 5V / Dip Switch SPST 9 Position Through Hole, Right Angle Slide (Standard) Actuator 100mA 5VDC
Datasheet
BD09AV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series BD
Package Tube
Circuit SPST
Number of Positions 9
Current Rating (Amps) 100mA
Voltage Rating 5VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Phosphor Bronze
Contact Finish Gold
Height Above Board 0.380" (9.64mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -40°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT), Glass Filled
Length 0.980" (24.89mm)
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names *BD09AV,2266-BD09AV,CKN3018
Standard Package 20
Win Source Part Number 1203610-BD09AV
Ultra Librarian 3D Model Ultra Librarian BD09AV CAD Model

Description

The BD series DIP switch is a single pole single throw (SPST) circuit switching component.

  • Circuit: SPST
  • Actuator Type: Slide
  • Actuator Level: Raised
  • Washable: Yes
  • Pitch: 0.100" (2.54mm), Full
  • Number of Positions: 9
  • Termination Style: PC Pin
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Voltage Rating: 5VDC
  • Current Rating: 100mA
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 10,000 cycles
  • Body Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Height Above Board: 0.380" (9.64mm)
  • Length: 0.980" (24.89mm)
  • Mounting Type: Through-Hole
  • Mounting Angle: Right-Angle
  • Operating Temperature Range: -40°C ~ 85°C
