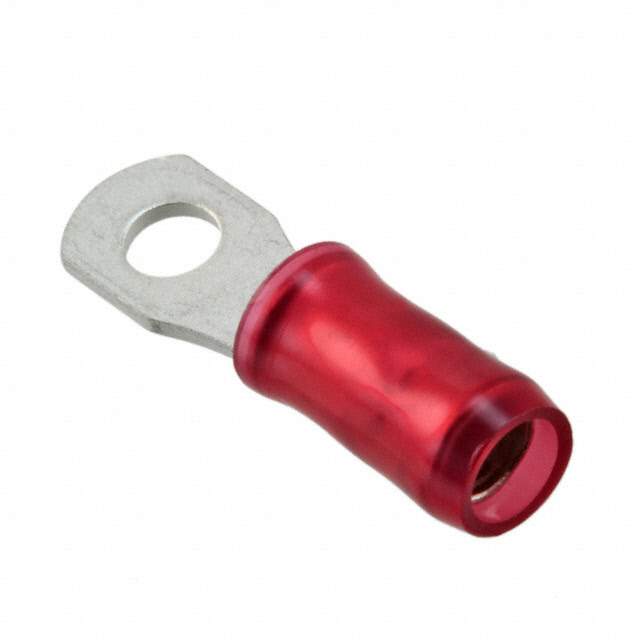

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Body Material Copper
Body Plating Tin
Color Red
Contact Material Copper
Contact Plating Tin
Depth 5.5 mm
ELV Compliant
Gender Female
Government Qualified No
Heavy Duty No
Inside Diameter 3.25 mm
Insulated Wire Support Yes
Insulation Insulated
Insulation Diameter 3.2 mm
Insulation Material Nylon
Lead Free Lead Free
Length 20.5 mm
Material Copper
Material Thickness 787.4 µm
Mount Stud
Number of Holes 1
Plating Tin
Plating Thickness 2.54 µm
RoHS Compliant
Sealable No
Stud Diameter 3.0226 mm
Stud Size M2.5
Termination Crimp
Thickness 787.4 µm
Tongue Thickness 800 µm
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 16 AWG
Win Source Part Number 1131576-130451
Categories Terminals
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 130451 CAD Model

Description

The TE Connectivity 1131576-130451 is a red insulated female terminal with a crimp termination from TE Connectivity.

  • Type: Insulated Female Terminal
  • Insulation: Yes, Red Nylon
  • Termination: Crimp
  • Contact Material: Copper
  • Contact Plating: Tin
  • Body Material: Copper
  • Body Plating: Tin
  • Thickness: 787.4 µm
  • Insulation Diameter: 3.2 mm
  • Wire Gauge: 16-22 AWG
  • Depth: 5.5 mm
  • Stud Size: M2.5
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • ELV Compliant: Yes
  • Supply and Demand Status: Limited
