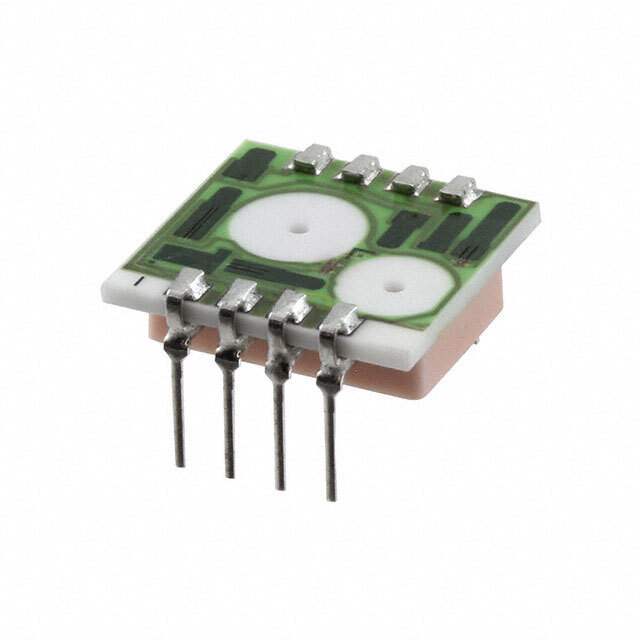

1220A-005G-3N TE Connectivity Measurement Specialties
Same model may have multiple batches, images only for reference.

1220A-005G-3N

Part No 1220A-005G-3N
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR 5PSIG .05V
Datasheet
1220A-005G-3N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310364-1220A-005G-3N
Manufacturer TE Connectivity Measurement Specialties
Category Sensors, Transducers > Pressure Sensors, Transducers
Packaging Tray
Part Status Obsolete
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 5PSI (34.47kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 50 mV
Accuracy ±0.1%
Voltage - Supply 1.235V
Ultra Librarian 3D Model Ultra Librarian 1220A-005G-3N CAD Model

Description

● PC Board Mountable Pressure Sensor
● 0-50 mV Output
● Voltage Excitation
● Gage, Absolute, and Differential
● Temperature Compensated
