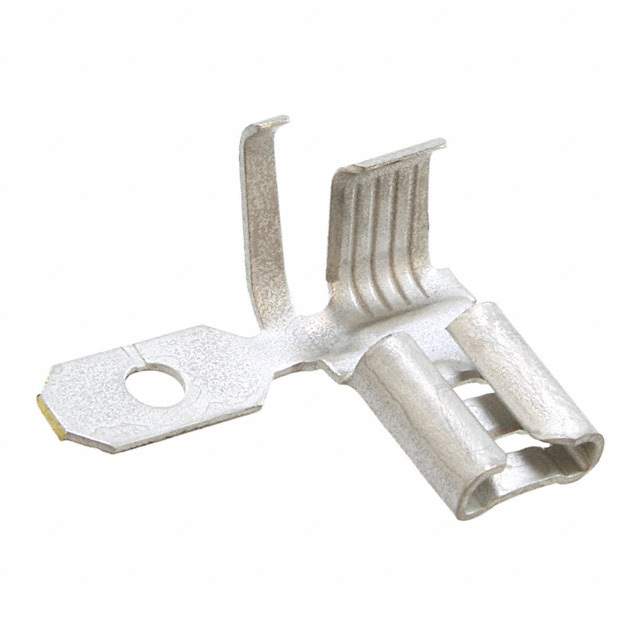

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.250" (6.35mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line), Right Angle
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.075" ~ 0.155" (1.91mm ~ 3.94mm)
Base Product Number 1217244
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -1217244-2-CSI,-1217244-2-SI,A110921CT,1217244-2-ND,A110921TR,2266-1217244-2TR
Standard Package 5,000
Win Source Part Number 1333551-1217244-2
Ultra Librarian 3D Model Ultra Librarian 1217244-2 CAD Model

Description

The 1333551-1217244-2 is a female quick disconnect connector from TE Connectivity AMP Connectors.

  • Packaging: Reel - TR
  • Wire Gauge: 14-18 AWG
  • Tab Width: 0.187" (4.75mm)
  • Insulation Diameter: 0.075" ~ 0.155" (1.91mm ~ 3.94mm)
  • Contact Material: Brass
  • RoHS Compliant: Yes
  • ECCN: EAR99
