Same model may have multiple batches, images only for reference.

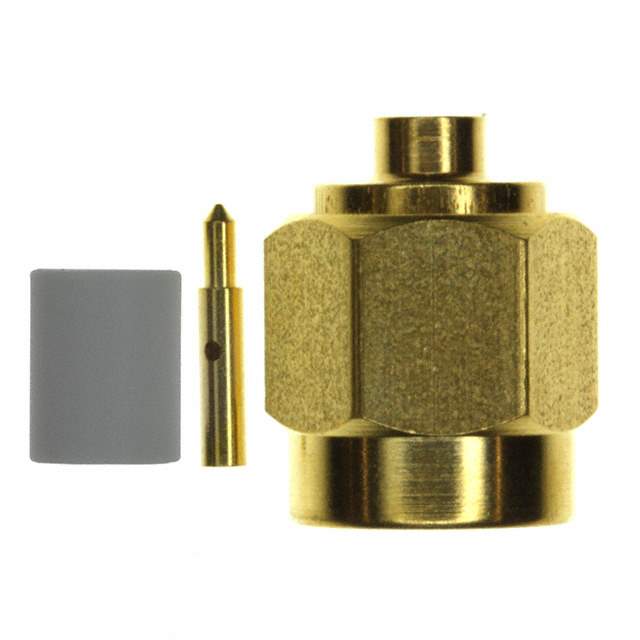

1050547-1 Real Image
Same model may have multiple batches, images only for reference.

1050547-1

Part No 1050547-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description CONN SMA PLUG STR 50 OHM SOLDER / SMA Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr TE Connectivity AMP Connectors
Package Bulk
Connector Style SMA
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-405 (.085" Semi Rigid)
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 1 Contact, 1 Insulator
Body Material Stainless Steel
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 105°C
Voltage Rating 335 V
Mating Cycles 500
Base Product Number 1050
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names 10505471,Q1137997A,0-1050547-1,1050547-1-ND,0-1050547-1-ND,2266-1050547-1,A99400
Standard Package 1
Win Source Part Number 987185-1050547-1
Ultra Librarian 3D Model Ultra Librarian 1050547-1 CAD Model

Description

This SMA Plug Male Pin Connector is a coaxial connector designed for use in high-frequency applications.

  • Impedance: 50Ohm
  • Frequency Range: up to 18 GHz
  • Connector Material: stainless steel
  • Housing Color: gold
  • Body Finish: gold
  • Voltage Rating: 335 V
  • Mounting: free hanging (in-line)
  • Package: bulk
  • Includes: 3 pieces - 1 connector, 1 contact, and 1 insulator
  • Fastening Type: threaded
  • Contact Termination: solder
  • Mating Cycles: 500
  • REACH Affected: true
  • ECCN: EAR99
