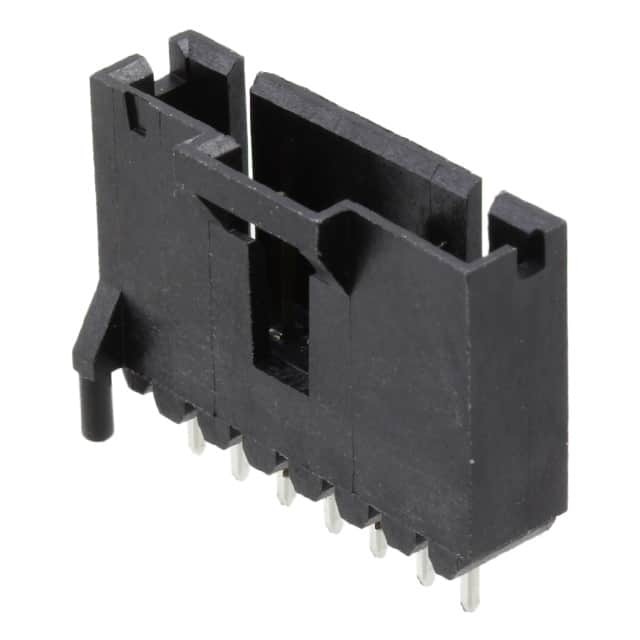

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU MTE
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.545" (13.84mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Thermoplastic
Features Board Guide, Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 104809
Standard Package 1,872 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853659-104809-6
Ultra Librarian 3D Model Ultra Librarian 104809-6 CAD Model

Description

The 853659-104809-6 is a male pin header in the AMPMODU MTE series from TE Connectivity.

  • Series: AMPMODU MTE
  • Positions: 7
  • Board Guide: Yes
  • Keying Slot: Yes
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: 1
  • Termination: Press-Fit and Solder
  • Fastening Type: Latch Holder
  • Package: Tube
  • Standard Package: 1,872 pieces
  • Contact Material: Brass
  • Mating Contact Finish: Gold, 15.0μin (0.38μm)
  • Post Contact Finish: Tin-Lead, 100.0μin (2.54μm)
  • Insulation Material: Thermoplastic
  • Insulation Color: Black
  • Mounting Type: Through Hole
  • Shrouded: 4 Walls
  • Operating Temperature: -65°C to 105°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating: 3A
  • REACH Status: Affected
  • HTSUS Code: 8536.69.4040
  • Base Product Number: 104809
