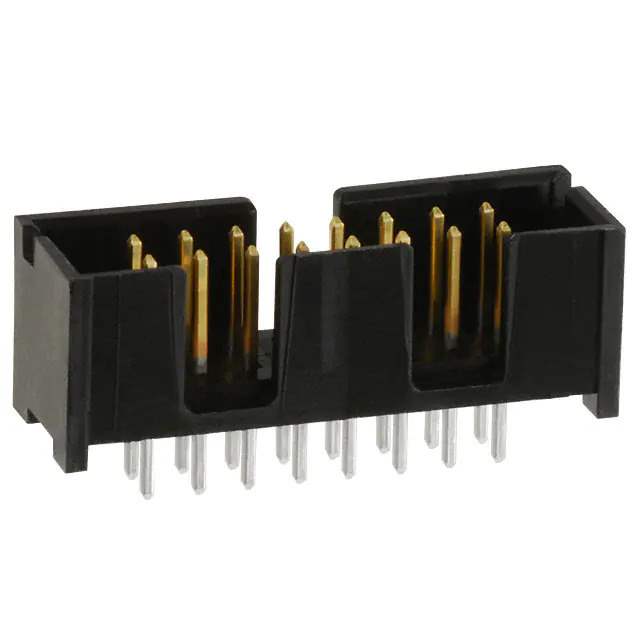

Same model may have multiple batches, images only for reference.

103308-3

Name: 103308-3
Brand: TE Connectivity
SKU: 847627
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	103308-3
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	AMP-Latch
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.388" (9.86mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Features	Keying Slot
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	103308
Standard Package	90 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	847627-103308-3
Ultra Librarian 3D Model	Ultra Librarian 103308-3 CAD Model

Description

The AMP-Latch Header Connector is a versatile electronic component from TE Connectivity.

Features: Keying Slot
Fastening Type: Push-Pull
Number of Positions: 16
Number of Rows: 2
Termination Type: Solder
Material: Brass
Pitch: 0.100" (2.54mm)
Contact Finish: Gold, Gold-Palladium
Temperature Range: -65°C to 105°C
Product Status: Active
