1-84953-8

Part No 1-84953-8
Manufacturer TE Connectivity
Catalog FFC, FPC (FlatFlexible) Connectors

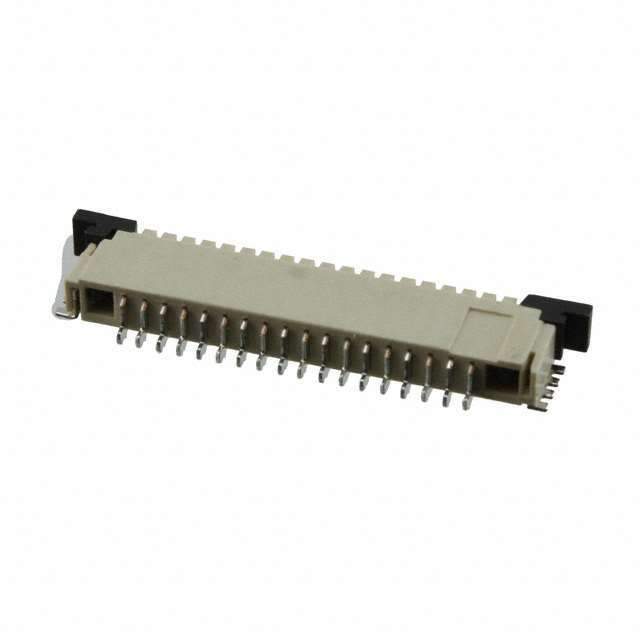

Description CONN FPC TOP 18POS 1.00MM R/A
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 18
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.101" (2.56mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 200V
Temperature Range - Operating -40°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 1A
Contact Finish Thickness 78.7μin (2.00μm)
Housing Color Natural
Actuator Color Black
Win Source Part Number 122171-1-84953-8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1-84953-8 CAD Model

Description

The 1-84953-8 is a reliable and versatile connector component manufactured for robust electrical connections. It ensures stable and secure transmission of signals or power in various industrial applications.

Features and Benefits

  • Robust Design: Provides durable connectivity solutions for harsh environments.
  • High Compatibility: Supports a wide range of wire sizes and types.
  • Easy Installation: Featuring a user-friendly design that permits quick setup and maintenance.

Applications

  • Automotive Systems
  • Industrial Machinery
  • Telecommunication Equipment
  • Consumer Electronics

Additional Details

The 1-84953-8 connector is constructed with top-notch materials to ensure long-lasting connections. Its ergonomic design aids in reducing installation time, and it's suitable for both automated and manual assembly processes.
