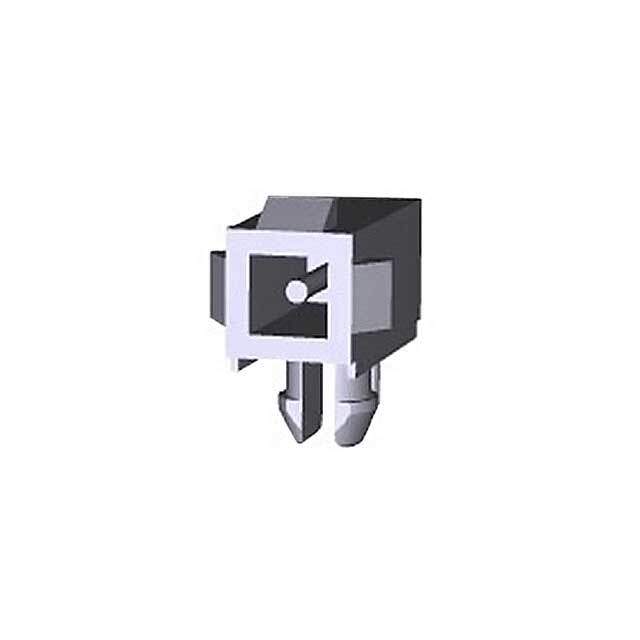

1-794374-1 Real Image
Same model may have multiple batches, images only for reference.

1-794374-1

Part No 1-794374-1
Manufacturer TE Connectivity
Catalog Barrel - Power Connectors
Description CONN HEADER R/A 1POS / Connector Header Through Hole, Right Angle 1 position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Connector Type Header
Contact Type Male Pin
Number of Positions 1
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.145" (3.68mm)
Insulation Height 0.225" (5.72mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -20°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 794374
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 1-794374-1-ND,A130985
Standard Package 200
Win Source Part Number 1034990-1-794374-1
Ultra Librarian 3D Model Ultra Librarian 1-794374-1 CAD Model

Description

This electronic component is a product with a Win Source Part Number of 1034990-1-794374-1.

  • Series: Mini-Universal MATE-N-LOK
  • Positions: 1
  • Feature: Board Lock
  • Connector Type: Header
  • Contact Type: Male Pins
  • Positions Loaded: All
  • Rows: 1
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Package: Bulk
  • Contact Material: Brass
  • Voltage Rating: 600VAC
  • Standard Package: 200 units
  • Operating Temperature: -20°C to 105°C
  • Alternative Parts (Cross-Reference): 172164-1, 1-480349-0, 03-06-2011, 03-09-2011, and 770064-1
