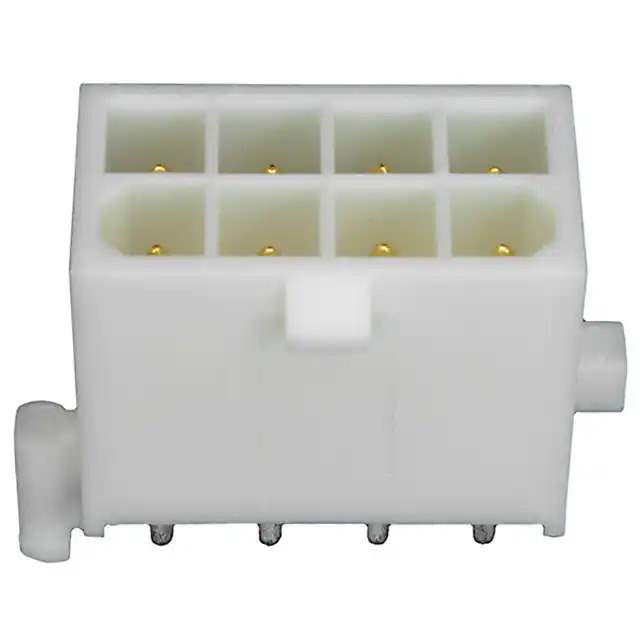

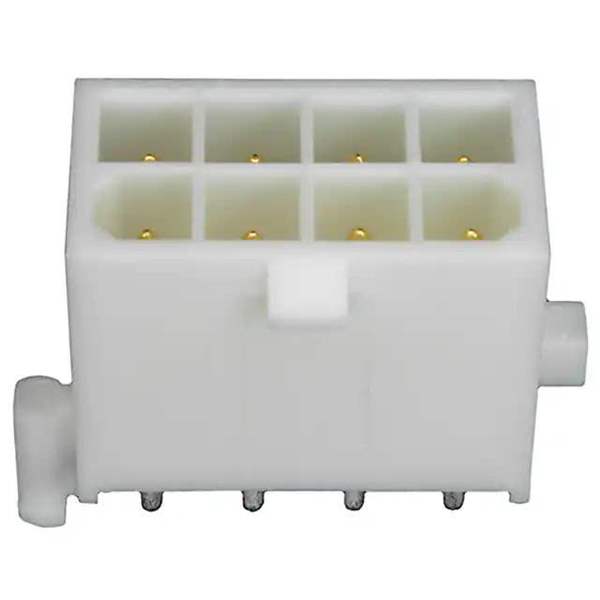

Same model may have multiple batches, images only for reference.

1-794073-1

Name: 1-794073-1
Brand: TE Connectivity
SKU: 854181
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-794073-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 4.14MM / Connector Header Through Hole 8 position 0.163" (4.14mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	Mini-Universal MATE-N-LOK
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.163" (4.14mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.163" (4.14mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.175" (4.45mm)
Insulation Height	0.531" (13.50mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Lock
Temperature Range - Operating	-20°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	White
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	600VAC
Contact Finish Thickness - Post	150.0µin (3.81µm)
Applications	General Purpose
Base Product Number	794073
Standard Package	200 pcs
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	854181-1-794073-1
Ultra Librarian 3D Model	Ultra Librarian 1-794073-1 CAD Model

Description

The Mini-Universal MATE-N-LOK series header connector is a versatile component for various electronic applications.

Positions: 8
Rows: 2
Contact Type: Male Pin
Termination: Solder
Fastening: Locking Ramp
Contact Material: Brass
Voltage Rating: 600VAC
Insulation Material: Polyamide (PA) and Nylon
Connection Type: Board-to-Cable/Wire
Pitch: 0.163" (4.14mm)
Contact Finish: Gold
Application: General-Purpose
Standard Package: 200 pcs
