Same model may have multiple batches, images only for reference.

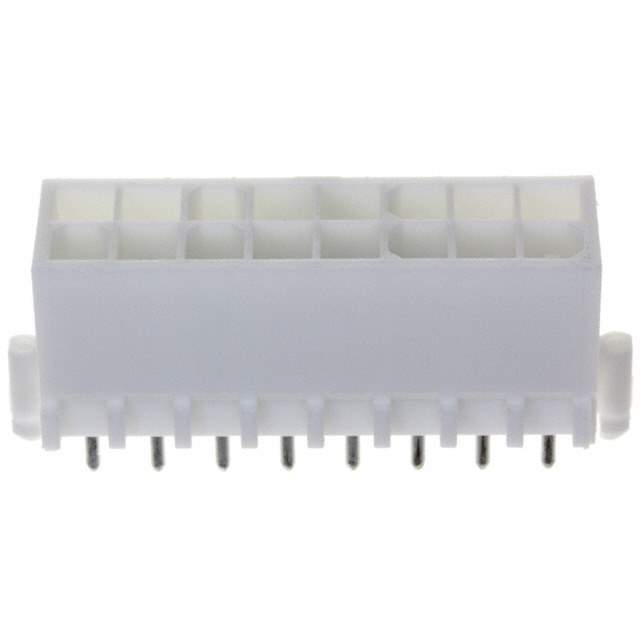

1-794068-0 Real Image
Same model may have multiple batches, images only for reference.

1-794068-0

Part No 1-794068-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 4.14MM / Connector Header Through Hole 16 position 0.163" (4.14mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.163" (4.14mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.163" (4.14mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.175" (4.45mm)
Insulation Height 0.531" (13.50mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 794068
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -1-794068-0-SI,2266-1-794068-0,-1-794068-0-LSI,A32469,17940680,1-794068-0-ND
Standard Package 200
Win Source Part Number 1334197-1-794068-0
Ultra Librarian 3D Model Ultra Librarian 1-794068-0 CAD Model

Description

TE Connectivity AMP Connectors are rectangular connectors with headers and male pins.

  • Positions: 16
  • Termination: Soldered
  • Win Source Part Number: 1334197-1-794068-0
  • Voltage Rating: 600VAC
  • Mounting: Through-Hole
  • Pitch-Mating: 0.163" (4.14mm)
  • Insulation Color: White
  • Shrouding: Shrouded-4-Wall
  • Row Spacing-Mating: 0.163" (4.14mm)
  • Manufacturer: TE Connectivity AMP Connectors
