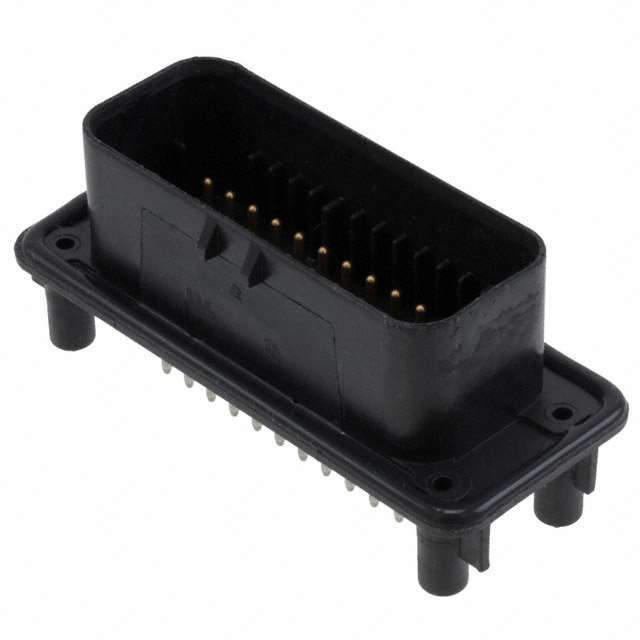

1-776231-1 Real Image
Same model may have multiple batches, images only for reference.

1-776231-1

Part No 1-776231-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPSEAL
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.157" (4.00mm)
Number of Positions 35
Number of Rows 3
Row Spacing - Mating 0.157" (4.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Panel Mount, Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Shape Circular
Contact Finish - Mating Gold-Palladium
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Mounting Flange, Sealed
Temperature Range - Operating -40°C ~ 125°C
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications Automotive, Industrial
Base Product Number 776231
Other Names 2266-1-776231-1,A104915,-1-776231-1-CSI,1-776231-1,-1-776231-1-SI,-1-776231-1-LSI,17762311
Standard Package 32
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293112-1-776231-1
Ultra Librarian 3D Model Ultra Librarian 1-776231-1 CAD Model

Description

The 1293112-1-776231-1 electronic component is a part of the AMPSEAL series of connectors, which is manufactured by TE Connectivity.

  • Connector Type: Header
  • Pins: 35 male pins
  • Mounting: Flange
  • Sealed: Yes
  • Fastening: Locking ramp
  • Packaging: Bulk
  • Contact Material: Brass
  • Contact Finish: Gold-palladium
  • Applications: Automotive and industrial
  • Shrouding: Shrouded 4 wall
  • Mounting: Panel or through hole
  • Temperature Range: -40°C to 125°C
